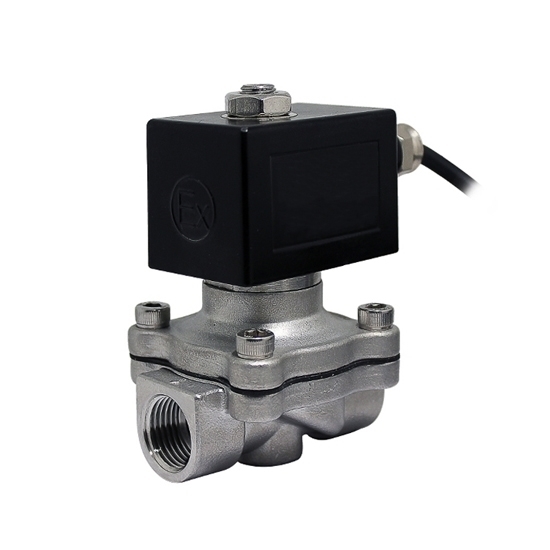

    Explosion Proof Solenoid Valve, Stainless Steel, NC, DC 6V/12V/24V

    5 out of 5 based on 1 reviews | Write a review
    $311.53
    Reasonable price and high quality stainless steel solenoid valve for sale online. 6V, 12V and 24V voltage of DC solenoid valve can be chosen. NC solenoid valve open from 0 bar with large flow rate. Hot water, civil gas and oil can be used as the explosion proof solenoid valve medium.
    *
    *
    *
    *
    SKU: ATO-EPSV-SNCD
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Stainless steel solenoid valve adopts direct lifting diaphragm construction. Solenoid operated valve widely used in liquid and gas line switch control.

    Specification:

    Model 2WEX-10 2WEX-15 2WEX-20 2WEX-25 2WEX-32 2WEX-40 2WEX-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 10 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa
    Max Pressure (AC 20VA) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Max Pressure (DC 16W) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Medium steam and hot water, civil gas, oil
    Fluid Temperature NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
    Screw Thread NPT (contact us for G screw thread if you need)
    Port Thread BSPP, BSPT, NPT, FLANCE
    Voltage DC 6V, 12V, 24V
    Coils Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
    Body Material stainless steel UPVC
    Tolerance ±10%
    Seal VITON, PTFE, NBR, EPDM
    Armature Tube stainless steel 304 (316 can be customized)
    Explosion Proof Ex mb II T4 Gb


    Explosion Proof Solenoid Valve NC Structure:

    Explosion proof solenoid valve NC structure

    Thread Connection Dimension (Unit: mm)

    Explosion proof solenoid valve DN10-25 dimension

    Size 2WEX-10 2WEX-15 2WEX-20 2WEX-25
    A 68 68 68 97
    B 56 56 56 76
    C NO 110 120 128 135
    NC 100 110 117 125
    D 13.5 13.5 16.5 20

    Explosion proof solenoid valve DN32-50 dimension

    Size 2WEX-32 2WEX-40 2WEX-50
    A 115 122 166
    B 86 93 118.5
    C NO 148 157 182
    NC 148 157 182
    D 24 28 36

    Tips: Safety of Solenoid Valve

    • General solenoid valve is not waterproof, when the conditions do not allow, please choose waterproof type, the factory can be customized.
    • The highest nominal pressure of the solenoid valve must exceed the highest pressure in the pipeline, otherwise the service life will be shortened or produce other accidents.
    • Corrosive liquid should be selected all stainless steel type. Explosive environment must choose the corresponding explosion-proof products.
