3 W AC Gear Motor, Torque Motor with Gearbox, single phase

$128.41

SKU: ATO-GEAR-TM3

3 W single phase gear motor, pinion shaft torque motor with gearbox, 50 Hz or 60 Hz frequency, 110V/ 220V AC voltage. Due to its high starting torque and sloping characteristics, it can adjust the torque and speed by changing the voltage applied to the motor.

6 W AC Gear Motor, Torque Motor with Gearbox, single phase

$154.68

SKU: ATO-GEAR-TM6

The provided torque motor is 6 W AC gear motor with gearbox, works at single phase 110V/220V voltage. It has high starting torque and sloping characteristics, allowing easily adjust the torque by changing the voltage going to the motor.

10 W AC Gear Motor, Torque Motor with Gearbox, single phase

$156.99

SKU: ATO-GEAR-TM10

ATO single phase pinion shaft torque motor, AC gear motor with gearbox, is extremely compact size, provides high starting torque, max. output power up to 10 W. With continuous torque ratings ranging from 25 Nm to 265 Nm, suitable for winding applications.

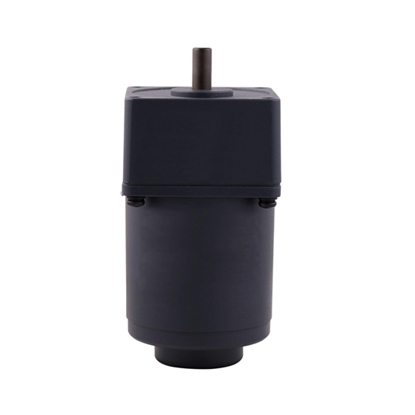

20 W AC Gear Motor, Torque Motor with Gearbox, single phase

$233.69

SKU: ATO-GEAR-TM20

Lower cost AC gear motor & torque motor with gearbox, 3, 5, 6...200 21 different kinds of gear ratio for you to choose. It has 20 W power and 1350 rpm rated speed, works at 110V/ 220V AC single phase voltage. The torque and speed can be adjusted by changing the voltage of the motor because of the large starting torque.

ATO 3W-20W torque motor with a gearbox for sale online. Single phase torque motor is an AC gear motor, equipped with a gearbox that can act as a brake when back drove, or a simple device to provide tension. 110V/220V AC gear motor works at 50 Hz or 60 Hz frequency. Low price pinion shaft torque motor with a gear ratio from 3 to 200 is an excellent product for winding and unwinding applications.

AC gear motor features

AC gear motor is widely used in industrial and agricultural production, transportation, national defense and daily life. Its characteristics are as follows:

AC gear motors are cheaper.
With the development of vector frequency conversion technology, it has been possible to simulate direct current with a frequency conversion motor.
Compared with DC gear motors, AC gear motors have sufficient advantages in simple structure, easy maintenance, low environmental requirements, energy-saving and productivity improvement, which makes
AC speed regulation widely used in industrial and agricultural production, transportation, national defense and daily life.
However, the AC gear motor has some disadvantages such as poor stability and speed regulation.

How to wire and test a 1 phase torque motor with a gearbox?

You will see an ATO single phase 220V, 50Hz, 6W, 1250rpm torque motor wired and tested in this video. First, we use a 250V 15A switch to shift the direction of rotation of the motor. Next, a 0.8μF capacitor was applied to the ends of the blue and white wires of the motor and connected to the transfer switch. The middle terminal of the transfer switch is connected to the power supply. Finally, turn on the power supply and perform the test.
