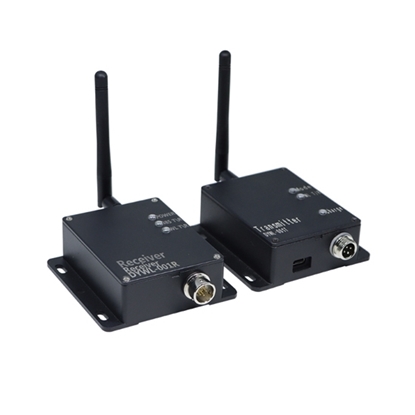

Load Cell Transmitter

A load cell transmitter is an electronic device designed to convert the low-magnitude signal from a load cell into a standardized output suitable for further processing, display, or automation systems. So they are usually used in combination with load cells.

How Load Cell Transmitter Works

A load cell transmitter functions as a crucial interface between a load cell and control or monitoring systems, converting the small electrical signals generated by the load cell into standardized outputs for industrial automation and monitoring. The working process involves multiple stages, including signal acquisition, amplification, filtering, conversion, and transmission.

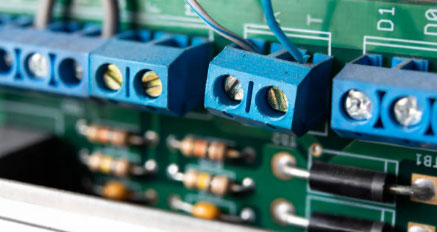

The process begins with signal acquisition from the load cell, where strain gauges inside the load cell form a Wheatstone bridge circuit. When a force or weight is applied, the strain gauges experience deformation, causing a change in electrical resistance. This variation results in a weak differential voltage signal, typically within the range of 0-30mV, which is too small to be directly used by industrial control systems.

To make the signal usable, the load cell transmitter amplifies it using an instrumentation amplifier. After amplification, the signal often contains electrical noise or interference from surrounding machinery, power lines, or environmental factors. The transmitter applies low-pass filtering to remove unwanted noise and stabilize the signal, ensuring that the output remains consistent and free from fluctuations. This step is essential for achieving stable and repeatable measurements, particularly in dynamic or noisy industrial environments.

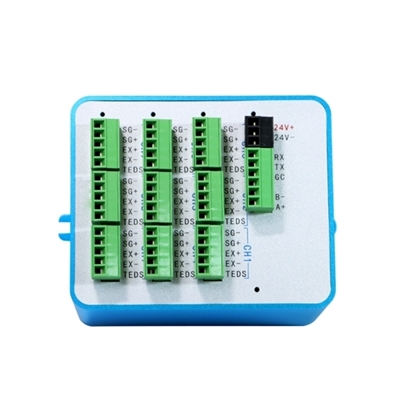

For systems that require digital data processing, some transmitters include a built-in Analog-to-Digital Converter (ADC), which transforms the analog signal into a digital format. This conversion allows the transmitter to communicate with RS485, Modbus, or USB-based systems, enabling seamless integration with digital monitoring platforms, computers, or cloud-based analysis tools. Digital conversion also enhances data accuracy and reliability for automated control systems.

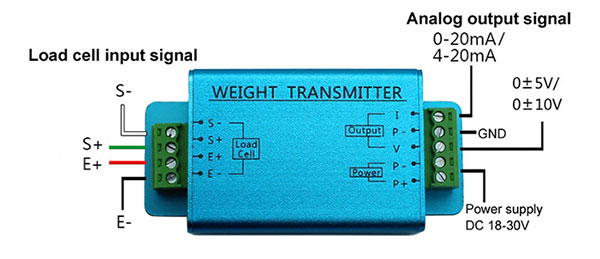

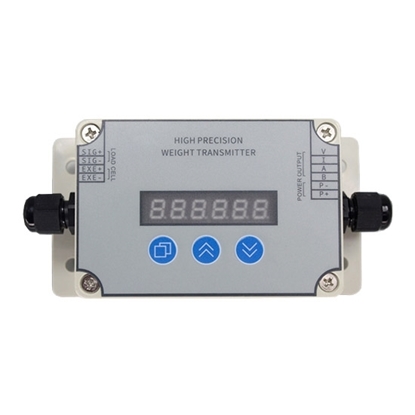

Once the signal has been conditioned, the load cell transmitter converts it into a standardized output, such as 4-20mA current output, 0-10V voltage output, or RS485/Modbus communication. The 4-20mA output is commonly used in industrial automation because it maintains signal integrity over long distances. The 0-10V output is ideal for voltage-based control systems, while RS485/Modbus is widely used in digital networks for real-time data exchange between multiple devices. These standardized outputs ensure that the transmitter can seamlessly interface with PLCs, SCADA systems, data loggers, or remote monitoring units.

Finally, the processed signal is transmitted to the control and monitoring system, where it can be used for real-time weight or force monitoring, automated process control, and alarm triggering if predefined thresholds are exceeded. Industries rely on load cell transmitters to automate weighing, batching, filling, and material handling processes, ensuring high efficiency and precision. Additionally, historical weight data can be logged for trend analysis, quality control, and predictive maintenance.

Load Cell Transmitter Application

A load cell transmitter plays a critical role in industrial weighing, automation, force measurement, structural load assessment, and logistics. It facilitates precise weight detection in tank, hopper, and conveyor applications, enhances batching, mixing, and dispensing accuracy in automated systems, and ensures real-time tension monitoring for cranes and cable structures. In heavy machinery and infrastructure, it contributes to load distribution analysis for bridges, buildings, and large-scale equipment, while in logistics and freight management, it improves weighing efficiency in truck scales, pallet measurement, and automated sorting processes. By converting low-magnitude load cell signals into standardized outputs such as 4-20mA, 0-10V, or RS485, it ensures effective connectivity with PLCs, SCADA, and remote monitoring platforms, thereby enhancing measurement accuracy.
