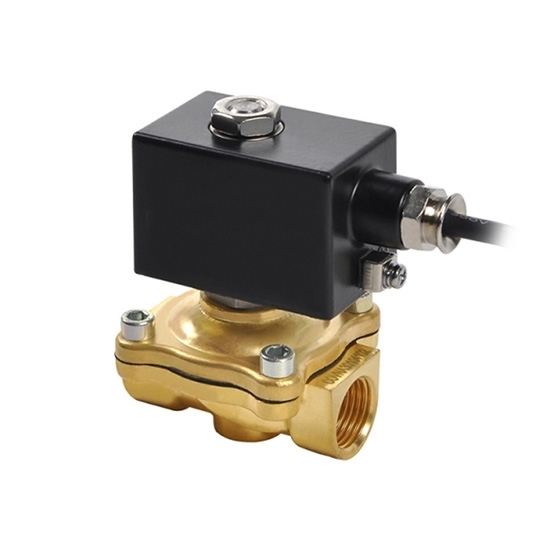

    Explosion Proof Solenoid Valve, Brass, NC, AC 24V/110V/220V

    5 out of 5 based on 1 reviews | Write a review
    $296.51
    High quality brass solenoid valve with reasonable price for sale. 3/8", 1/2", 3/4", 1" port size of 24V solenoid valve can be chosen. The coil shell of explosion proof solenoid valve has high safety performance and can withstand the pressure of gas explosion.
    *
    *
    *
    *
    SKU: ATO-EPSV-BNCA
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    The coil shell of the explosion-proof solenoid valve has a blocking effect on the gas explosion energy transfer. Especially suitable for the transmission of flammable and explosive media.

    Specification:

    Model 2WEX-10 2WEX-15 2WEX-20 2WEX-25 2WEX-32 2WEX-40 2WEX-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 10 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa
    Max Pressure (AC 20VA) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Max Pressure (DC 16W) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Medium steam and hot water, civil gas, oil
    Fluid Temperature NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
    Screw Thread NPT (contact us for G screw thread if you need)
    Port Thread BSPP, BSPT, NPT, FLANCE
    Voltage AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
    Coils Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
    Body Material brass
    Tolerance ±10%
    Seal VITON, PTFE, NBR, EPDM
    Armature Tube stainless steel 304 (316 can be customized)
    Explosion Proof Ex mb II T4 Gb


    Explosion Proof Solenoid Valve NC Structure:

    Explosion proof solenoid valve NC structure

    Thread Connection Dimension (Unit: mm)

    Explosion proof solenoid valve DN10-25 dimension

    Size 2WEX-10 2WEX-15 2WEX-20 2WEX-25
    A 68 68 68 97
    B 56 56 56 76
    C NO 110 120 128 135
    NC 100 110 117 125
    D 13.5 13.5 16.5 20

    Explosion proof solenoid valve DN32-50 dimension

    Size 2WEX-32 2WEX-40 2WEX-50
    A 115 122 166
    B 86 93 118.5
    C NO 148 157 182
    NC 148 157 182
    D 24 28 36

    Tips: Working Principle of Explosion Proof Solenoid Valve

    There is a closed chamber in the explosion-proof solenoid valve, and there are through holes in different positions, each hole leads to different tubing. In the middle of the chamber is a valve, and two electromagnets are on both sides. The valve body will be attracted to which side when the magnet coil is energized. By controlling the movement of the valve body to stop or leak out of different drainage holes, and the oil inlet hole is normally open, the hydraulic oil will enter the different drainage pipe, and then through the pressure of the oil to promote the piston cylinder, piston rod, piston rod to drive the mechanical device.

    Existing reviews of Explosion Proof Solenoid Valve, Brass, NC, AC 24V/110V/220V
    Pretty good for the money
    This is pretty good for the money. You need to buy or re purpose an electrical cord so you can plug it in. Explosion proof brass NC solenoid valve has been running these for a couple of months without issues so far. I will order more.
    From: Joherry | Date: 14/11/2022
