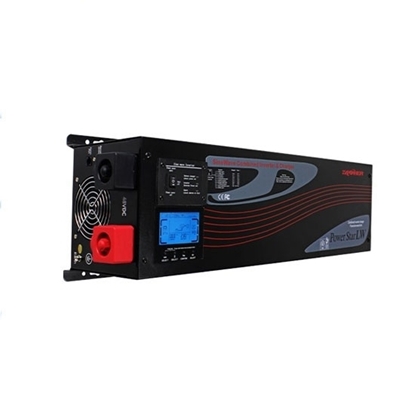

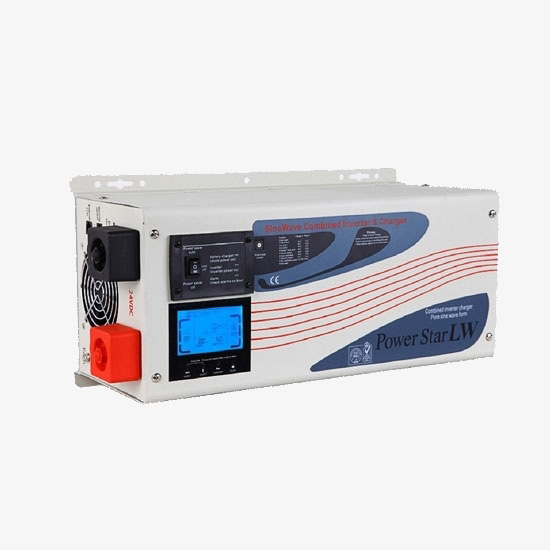

Inverter Chargers

As a combined inverter and charger in one unit, a series of inverter / chargers on ATO.com deliver pure sine wave AC power from DC power and work as a charger for powering a backup battery bank when a power outage occurs. The inverter / chargers are low frequency type with transformer, UPS function, available with 12V, 24V and 48V from 1000W to 6000W. With LCD display and remote control function, this inverter chargers also come with multi protections of overload, over-temperature, low battery and overcharge, to provide safe charging for your appliances or devices.

Safety Tips For Inverter Charger Installation:

• Inverter charger 1000W and higher should be hard wired and include the proper fuses. An inverter will generate heat. Ensure your installation allows for proper venting and heat dissipation, with at least two inches of clearance on all sides and the top.
• Batteries can generate potentially explosive hydrogen gas that can accumulate near the batteries if they are not well ventilated. The battery compartment of inverter charger should have some ventilation to outside air.
• Don't place your inverter charger near a heat source, near anything flammable or beneath an area where liquids are used or transferred.
• Ensure the location will remain free from rain, moisture and dust and is not exposed to direct sunlight.
• When installing an inverter in an RV, connect it to the battery used to power the RV's interior, not the battery that powers the engine.
• Ground the inverter charger using its main grounding lug. You can usually do this by fitting the inverter's ground connector around the shank of a bolt in the vehicle's frame. Use the same gauge wire for the ground cable as for the supply cable.

Why Choose a Low Frequency Inverter Charger?

The low frequency inverter charger generates pure sine wave so it can run resistance and inductive load al well as capacitive load like motor. The inverter / charger features anti-interference, high adaptability, strong practicability with AC bypass mode and auto charging functions. Compared to high frequency inverter charger, it enjoys great advantages.

• The low frequency inverter / charger has higher reliability than the high frequency one, so it is not easily damaged.
• The low frequency inverter charger is able to suppress higher harmonic components in the waveform.
• It has better overload and short circuit protections than the high frequency inverter.
• It has stronger load capacity, especially for the impact load, compared to the high frequency inverter.
