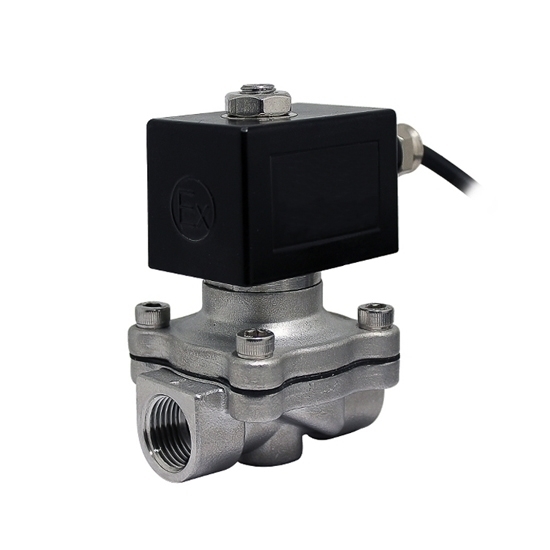

    Explosion Proof Solenoid Valve, Stainless Steel, NO, DC 6V/12V/24V

    5 out of 5 based on 1 reviews | Write a review
    $368.25
    Economical price explosion proof solenoid valve with stainless steel material for sale online. 6V, 12V and 24V voltage of stainless steel solenoid valve can be chosen. Pressure of NO solenoid valve between 0.0 MPa and 1.0 MPa. Solenoid valve 12V can be applied to low pressure system.
    *
    *
    *
    *
    SKU: ATO-EPSV-SNOD
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Stainless steel solenoid valve adopts direct lifting diaphragm construction. Tolerance of explosion proof solenoid valve is in the 10% range.

    Specification:

    Model 2WEX-10 2WEX-15 2WEX-20 2WEX-25 2WEX-32 2WEX-40 2WEX-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 10 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa
    Max Pressure (AC 20VA) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Max Pressure (DC 16W) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Medium steam and hot water, civil gas, oil
    Fluid Temperature NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
    Screw Thread NPT (contact us for G screw thread if you need)
    Port Thread BSPP, BSPT, NPT, FLANCE
    Voltage DC 6V, 12V, 24V
    Coils Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
    Body Material stainless steel UPVC
    Tolerance ±10%
    Seal VITON, PTFE, NBR, EPDM
    Armature Tube stainless steel 304 (316 can be customized)
    Explosion Proof Ex mb II T4 Gb


    Explosion Proof Solenoid Valve NO Structure:

    Explosion proof solenoid valve NO structure

    Thread Connection Dimension (Unit: mm)

    Explosion proof solenoid valve DN10-25 dimension

    Size 2WEX-10 2WEX-15 2WEX-20 2WEX-25
    A 68 68 68 97
    B 56 56 56 76
    C NO 110 120 128 135
    NC 100 110 117 125
    D 13.5 13.5 16.5 20

    Explosion proof solenoid valve DN32-50 dimension

    Size 2WEX-32 2WEX-40 2WEX-50
    A 115 122 166
    B 86 93 118.5
    C NO 148 157 182
    NC 148 157 182
    D 24 28 36

    Tips: Advantages of Explosion Proof Solenoid Valve

    • Explosion-proof solenoid valve has long working life.
    • The coil of the explosion-proof solenoid valve allows long term power operation. For long time valve open only short closed, it is appropriate to choose normally open solenoid valve.
    • Operation frequency of explosion-proof solenoid valve: when the operation frequency is high, the structure should be preferred direct acting solenoid valve, and the power supply should be preferred AC.
