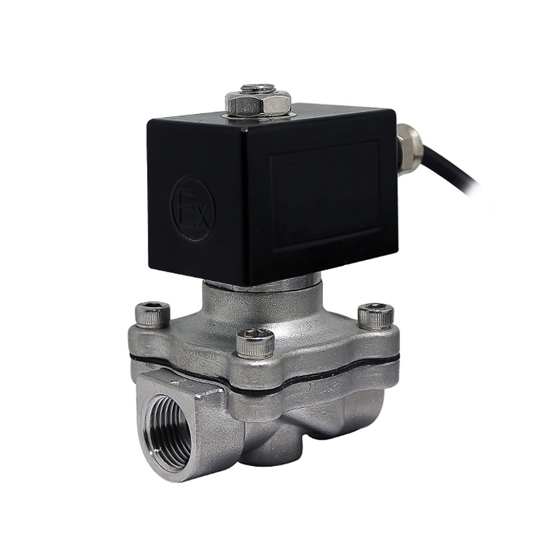

    Explosion Proof Solenoid Valve, Stainless Steel, NC, AC 24V/110V/220V

    5 out of 5 based on 2 reviews | Write a review
    $311.53
    Cheap explosion proof solenoid valve for sale online. Stainless steel solenoid valve adopts direct lifting diaphragm construction. 3/8", 1/2", 3/4" port size of 24V AC solenoid valve can be chosen. Solenoid operated valve can be used for liquid and gas line switch control.
    *
    *
    *
    *
    SKU: ATO-EPSV-SNCA
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Stainless steel solenoid valves is suitable for hot water and oil. This solenoid valve features high quality, high reliability and long service life.

    Specification:

    Model 2WEX-10 2WEX-15 2WEX-20 2WEX-25 2WEX-32 2WEX-40 2WEX-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 10 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa
    Max Pressure (AC 20VA) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Max Pressure (DC 16W) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Medium steam and hot water, civil gas, oil
    Fluid Temperature NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
    Screw Thread NPT (contact us for G screw thread if you need)
    Port Thread BSPP, BSPT, NPT, FLANCE
    Voltage AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
    Coils Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
    Body Material stainless steel UPVC
    Tolerance ±10%
    Seal VITON, PTFE, NBR, EPDM
    Armature Tube stainless steel 304 (316 can be customized)
    Explosion Proof Ex mb II T4 Gb


    Explosion Proof Solenoid Valve NC Structure:

    Explosion proof solenoid valve NC structure

    Thread Connection Dimension (Unit: mm)

    Explosion proof solenoid valve DN10-25 dimension

    Size 2WEX-10 2WEX-15 2WEX-20 2WEX-25
    A 68 68 68 97
    B 56 56 56 76
    C NO 110 120 128 135
    NC 100 110 117 125
    D 13.5 13.5 16.5 20

    Explosion proof solenoid valve DN32-50 dimension

    Size 2WEX-32 2WEX-40 2WEX-50
    A 115 122 166
    B 86 93 118.5
    C NO 148 157 182
    NC 148 157 182
    D 24 28 36

    Tips: What is NBR?

    Nitrile butadiene rubber (NBR)is prepared by emulsion polymerization of butadiene and acrylonitrile. Nitrile butadiene rubber is mainly produced by low temperature emulsion polymerization. It has excellent oil resistance, high wear resistance, good heat resistance and strong adhesion. It is widely used to make all kinds of oil-resistant rubber products, bushing, flexible packaging, flexible hose, cable adhesive materials, etc., and has become an indispensable elastic material in automobile, petroleum, and other industries.

    Existing reviews of Explosion Proof Solenoid Valve, Stainless Steel, NC, AC 24V/110V/220V
    Do you have any brackets that work with this solenoid valve for mounting?
    Excellent!
    Thank you, do you have any brackets that work with this valve for mounting?
    From: coco | Date: 13/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we do not provide any brackets.
    The valve is directly connected to the pipeline and fixed, and no mounting bracket is required.
    Happy with this explosion proof solenoid valve
    The quality of this explosion proof solenoid valve is very good. It's the best solenoid valve I've ever bought. In AC 24V, it works very well and I'm very happy with this one.
    From: Gammon | Date: 08/11/2022
    Was this review helpful? Yes No (0/0)
