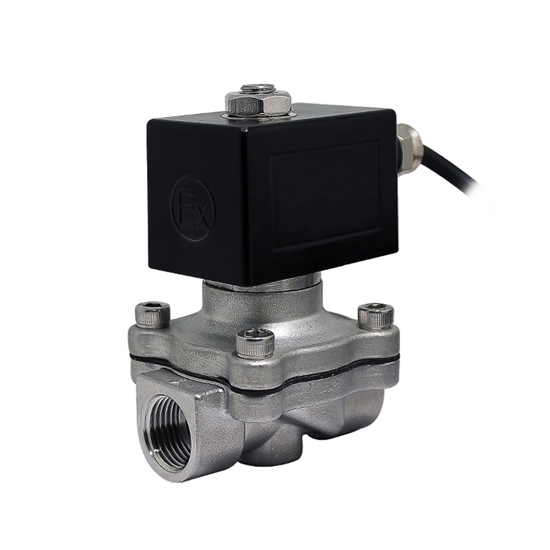

    Explosion Proof Solenoid Valve, Stainless Steel, NO, AC 24V/110V/220V

    5 out of 5 based on 1 reviews | Write a review
    $368.25
    High quality NO solenoid valve at affordable price for sale online. 3/8", 1/2", 3/4", 1" port size of 110V solenoid valve can be chosen. Tolerance of explosion proof solenoid valve is in the 10% range. Stainless steel solenoid valve can be used for liquid and gas line switch control.
    *
    *
    *
    *
    SKU: ATO-EPSV-SNOA
    30-day Returns
    Free Shipping
    Delivery date: 7-10 days

    Stainless steel solenoid valves is suitable for steam, oil and hot water. NO solenoid valve open from 0 bar with large flow rate. This solenoid valve features high quality, high reliability and long service life.

    Specification:

    Model 2WEX-10 2WEX-15 2WEX-20 2WEX-25 2WEX-32 2WEX-40 2WEX-50
    Port Size 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Orifice (mm) 10 15 20 25 32 40 50
    Cv 4.5 4.5 9.3 12 24 29 48
    Min Pressure 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa 0.0 MPa
    Max Pressure (AC 20VA) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Max Pressure (DC 16W) 0.7 MPa 0.7 MPa 0.7 MPa 0.7 MPa 1.0 MPa 1.0 MPa 1.0 MPa
    Medium steam and hot water, civil gas, oil
    Fluid Temperature NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
    Screw Thread NPT (contact us for G screw thread if you need)
    Port Thread BSPP, BSPT, NPT, FLANCE
    Voltage AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
    Coils Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
    Body Material stainless steel UPVC
    Tolerance ±10%
    Seal VITON, PTFE, NBR, EPDM
    Armature Tube stainless steel 304 (316 can be customized)
    Explosion Proof Ex mb II T4 Gb


    Explosion Proof Solenoid Valve NO Structure:

    Explosion proof solenoid valve NO structure

    Thread Connection Dimension (Unit: mm)

    Explosion proof solenoid valve DN10-25 dimension

    Size 2WEX-10 2WEX-15 2WEX-20 2WEX-25
    A 68 68 68 97
    B 56 56 56 76
    C NO 110 120 128 135
    NC 100 110 117 125
    D 13.5 13.5 16.5 20

    Explosion proof solenoid valve DN32-50 dimension

    Size 2WEX-32 2WEX-40 2WEX-50
    A 115 122 166
    B 86 93 118.5
    C NO 148 157 182
    NC 148 157 182
    D 24 28 36

    Tips: Function of Explosion-proof Solenoid Valve

    The coil shell of the explosion-proof solenoid valve not only has the flameproof effect under the pressure of gas explosion, but also has the blocking effect on the energy transfer of gas explosion, and the safety performance is higher. Is specially designed for the transmission of flammable and explosive medium or dedicated to explosive dangerous places of special solenoid valve series products, different environments and fluids should choose different grade of explosion-proof solenoid valve.
