Ultrasonic Level Sensor

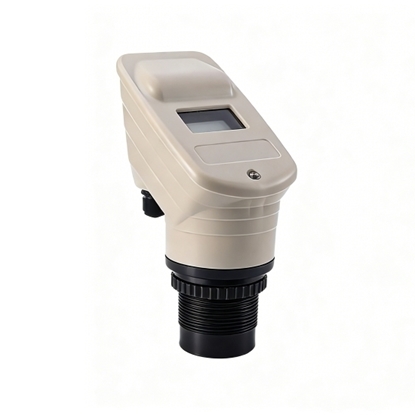

Ultrasonic level sensor has integrated structure and mainly consists of LCD display, ultrasonic probe and waterproof connector. Ultrasonic level sensor can be used for non-contact level measurement of various medium, such as liquid (water/fuel/oil), solid (metal or nonmetal), or powder (chemical materials), etc. The measuring range can be from 0-5m, 0-10m, 0-15m, 0-20m to 0-60m. The output signal can be 4-20mA or RS485/232. Ultrasonic level sensor also has optional power supply DC 24V or AC 220/50Hz.

Ultrasonic level sensor has high accuracy 0.3%FS and measuring range 0-5m, 0-10m, 0-15m to 0-40m. It also adopts integrated structure and mainly consists of OLED display, waterproof connectors and ultrasonic probe. Ultrasonic level sensor using advanced non-contact ultrasonic measurement technology can be used for liquid/solid/powder level of tapered/spherical tank, tapered feed outlet tank, sewage tank, river, lake, etc. It has optional output signal 4-20mA, RS485, HART, 2 relays or 3 NPN, optional power supply DC 12-16V, DC 24-28V, AC 220V or built-in battery.

Ultrasonic level sensor with LED display adopts waterproof shell and circular connector. The internal ultrasonic transducer and receiving transducer has high resolution and fast response time. Ultrasonic level sensor can be used for non-contact liquid/solid/powder tank level measurement. The measuring medium includes water, fuel, oil, metal, etc. The measuring range can be 0.1-0.5m/ 0.15-1m/ 0.2-2m/ 0.3-3m/ 0.4-5m/ 0.5-6m.

Wireless ultrasonic level sensor is designed for liquid level measurement within 1-8 meters, with excellent measurement accuracy and stability. It adopts G2 thread mounting and supports RS485 MODBUS protocol. IP68 protection level can be waterproof and dustproof, suitable for indoor and outdoor complex working conditions.

This non-contact ultrasonic level sensor is specially designed for the accurate detection of water-based liquids, and is capable of providing stable level data in the range of 0.5m to 1.5m, and communicating with the system through the RS232/RS485 interface to ensure real-time data transmission.
