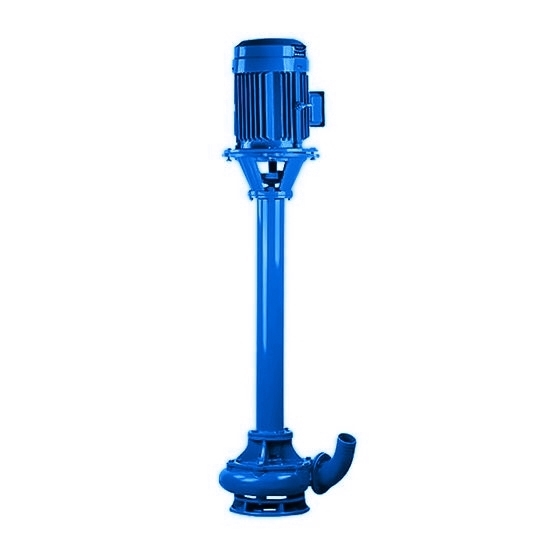

5 HP Vertical Mud Pump, 4 inch, 380V

5 hp vertical mud pump with pure copper motor and thick pump body. This mud suction pump is critical in maintaining wellbore stability, cooling and lubricating the drill bit, and carrying cuttings to the surface. It is suitable for lighter, less demanding drilling tasks compared to higher horsepower models.

Feature:

• Solid shaft. Mud pump with high quality solid spindle of carbon steel.
• Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
• Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

• Model: ATO-NL100-8
• Power: 5 HP (4 kW)
• Voltage: 380V
• Flow: 80-100 m³/h
• Caliber: 4 inch (100 mm)
• Motor: copper motor
• Rotate Speed: 1450 r/min
• Pump Lift: 8-9m
• Height of Pump: 1.2m
• Net Weight: 80 kg

Mud Pump Structure:

Method of Operation:

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: Precautions For Mud Pump Installation

• The installation may be vertical or inclined, but the motor must not come into contact with water.
• Three phase power to be connected, not connected easily lead to lack of phase burning motor.
• The bottom of the pump should avoid large particles into the stuck impeller, such as found that the pump does not turn should immediately stop the inspection.
• The motor has positive and negative rotation. Please ensure that the motor is running in the same direction as the pump before use.
• The bottom of the mud pump body is not painted, there are some pumps at the bottom of the pump body for a long time there will be some rust.
