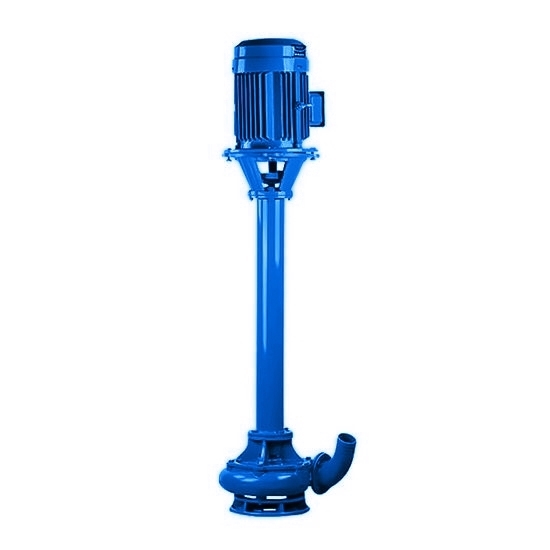

20 HP Vertical Mud Pump, 4 inch, 380V

20 hp (15 kW) vertical mud pump with thickened pump body and holder. The thickened holder makes the heavy bearing strong. Sewage treatment plant and bog can be used this mud pump.

Feature:

• Solid shaft. Mud pump with high quality solid spindle of carbon steel.
• Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
• Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

• Model: NL100-12
• Power: 20 HP (15 kW)
• Voltage: 380V
• Flow: 100-120 m³/h
• Caliber: 4 inch (100 mm)
• Motor: copper motor
• Rotate Speed: 1450 r/min
• Pump Lift: 10-16m
• Height of Pump: 1.2m
• Net Weight: 220 kg

Mud Pump Structure:

Method of Operation:

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: What is Mud Pump?

A mud pump is a reciprocating pump used to circulate fluid (mud) through a well during drilling. The reason for circulating fluid through the well is to carry the cuttings from the drilling process back up to the surface. The mud pump is used in oil and gas drilling operations as well as water drilling.
