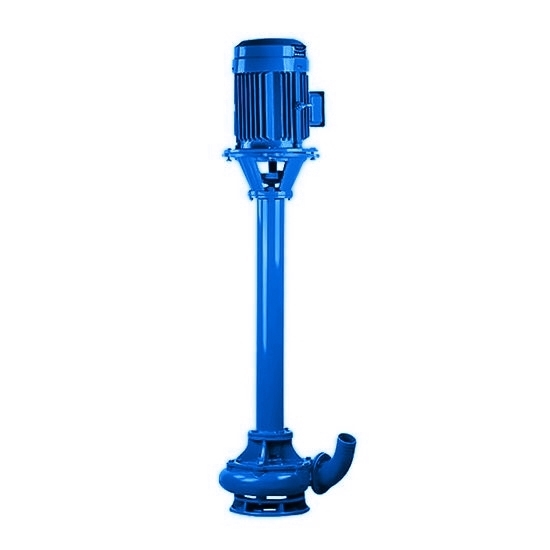

2 HP Vertical Mud Pump, 2 inch, 380V

A 2 hp mud pump typically refers to a small, portable pump used in drilling and mining operations. Mud suction pump's designed to handle and circulate drilling fluids (or mud) within drilling rigs to maintain pressure and lubrication, essential for efficient drilling operations.

Feature:

• Solid shaft. Mud pump with high quality solid spindle of carbon steel.
• Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
• Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

• Model: ATO-NL50-10
• Power: 2 HP (1.5 kW)
• Voltage: 380V
• Flow: 15-25 m³/h
• Caliber: 2 inch (50 mm)
• Motor: copper motor
• Rotate Speed: 1450 r/min
• Pump Lift: 10-12m
• Height of Pump: 1.2m
• Net Weight: 56 kg

Mud Pump Structure:

Method of Operation:

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: 4 Advantages of Copper Motor

• Durable. Copper and aluminum have different electrical resistivity. Aluminum is more resistive than copper. That will lead to the heat of aluminum wire in the process of use is relatively high, so it is easy to burn out the motor. The connection point of the power cord is easy to burn out, resulting in the whole machine life of the aluminum wire motor is much lower than the service life of the pure copper wire motor.
• Energy saving. Greater resistance leads to greater heat. Pure copper wire generator, pure copper wire than aluminum wire resistance is small, low heating, current patency.
• More silent. On average, every 3 dB increase in noise doubled the noise energy. The noise of aluminum wire motor is 7 dB higher than that of copper wire motor, so the noise of aluminum wire generator is more than twice as large as that of pure copper generator.
• Do not heat easily. Pure copper motor, stator and rotor are made of copper, can work continuously for more than ten hours without abnormal heating and other phenomena.
