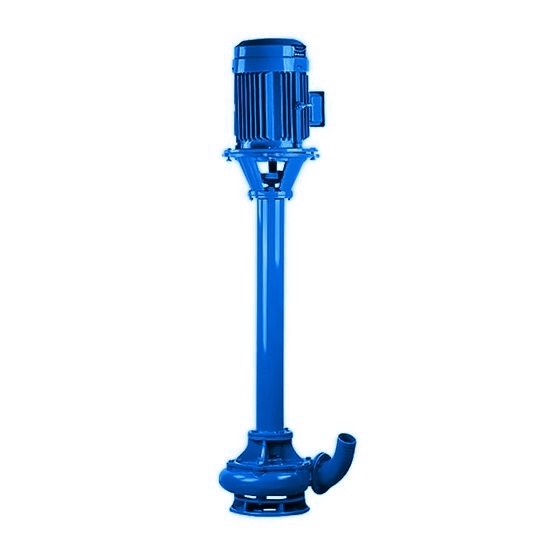

15 HP Vertical Mud Pump, 4 inch, 380V

A 15 hp mud pump refers to a type of industrial pump used primarily in drilling operations, especially in oil and gas exploration. Vertical mud pump with 100 mm caliber and 380V voltage. Mud motor pump adopts solid spindle of carbon steel, makes the service life longer.

Feature:

• Solid shaft. Mud pump with high quality solid spindle of carbon steel.
• Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
• Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

• Model: ATO-NL100-12
• Power: 15 HP (11 kW)
• Voltage: 380V
• Flow: 100-150 m³/h
• Caliber: 4 inch (100 mm)
• Motor: copper motor
• Rotate Speed: 1450 r/min
• Pump Lift: 8-10m
• Height of Pump: 1.2m
• Net Weight: 200 kg

Mud Pump Structure:

Method of Operation:

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: How Does Mud Pump Work?

Rotational power is supplied to the mud pump through an external power source. The power end of the pump converts this rotational energy through a crankshaft to a reciprocating motion that moves the pistons.

The pistons move back and forth in their liners, exerting a force on the cylinder chamber. During the retraction of the piston, valves open to allow the fluid to be drawn into the cylinder. Once the piston has fully retracted, it is pushed back into the cylinder.

At this time the intake valves are closed and the exhaust valves open, allowing the piston to force the fluid out of the cylinder under pressure. Once the piston reaches its maximum depth into the cylinder, the exhaust valves close and the process repeats.
