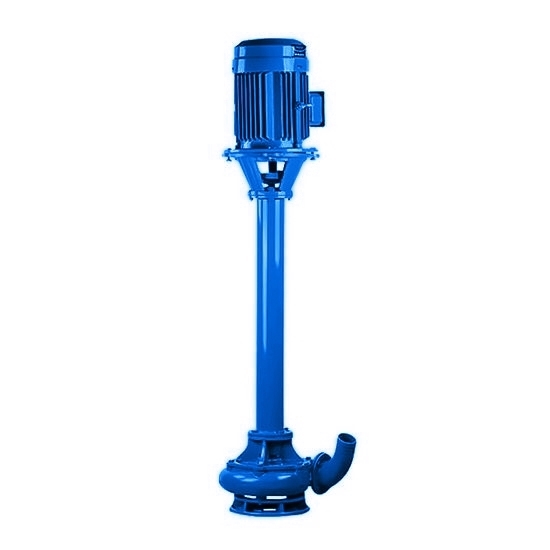

10 HP Vertical Mud Pump, 6 inch, 380V

Good price 10 hp mud pump for sale online. Mud pump with three phase 380V pure copper motor, so that the use of more secure. Submersible mud pumps are crucial in these industries for their ability to pump drilling mud or slurry under high pressure into drill holes to cool the drill bit, remove cuttings, and maintain pressure to prevent cave-ins.

Feature:

• Solid shaft. Mud pump with high quality solid spindle of carbon steel.
• Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
• Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

• Model: ATO-NL150-8
• Power: 10 HP (7.5 kW)
• Voltage: 380V
• Flow: 100-150 m³/h
• Caliber: 6 inch (150 mm)
• Motor: copper motor
• Rotate Speed: 1450 r/min
• Pump Lift: 8-9m
• Height of Pump: 1.2m
• Net Weight: 130 kg

Mud Pump Structure:

Method of Operation:

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: Parts of Mud Pump

There are two main parts to a mud pump: the fluid end and the power end. The fluid end is where the actual pumping takes place. The components of the fluid end consist of valves, pistons (or plungers), and liners. Since the fluid end is in constant contact with the material being pumped, most modern designs allow for quick replacement of worn components as needed. This dramatically extends the life of a unit without having to completely replace the pump. The power end of a mud pump is responsible for taking the input power, typically through a driveshaft, and converting it into the reciprocating motion needed for the pistons. In most mud pump applications, the power end uses a crosshead crankshaft for this conversion.
