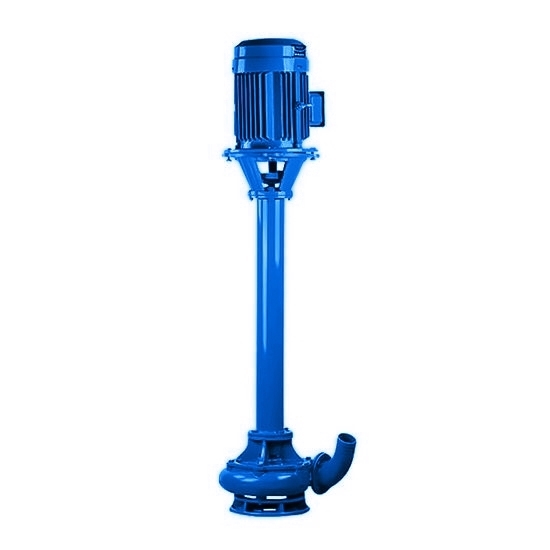

30 HP Vertical Mud Pump, 6 inch, 380V

Heavty duty mud pump with 22 kW power and 380V voltage. 150 mm caliber and 10-16m of head can better help work in bog, farm and sewage treatment plant. 30 hp vertical mud pumps are robustly built to withstand harsh conditions and are integral in ensuring smooth drilling operations by facilitating the circulation and cooling of the drill bit and carrying away drill cuttings.

Feature:

• Solid shaft. Mud pump with high quality solid spindle of carbon steel.
• Pump body thick. The pump body is made of high quality pig iron, durable and equipped with a thickened base. Thickened impeller, wear-resistant and dry rotating.
• Copper motor. Vertical mud pump with the motor are all copper wire three phase 380V motor.

Specification:

• Model: ATO-NL150-12
• Power: 30 HP (22 kW)
• Voltage: 380V
• Flow: 100-150 m³/h
• Caliber: 6 inch (150 mm)
• Motor: copper motor
• Rotate Speed: 1450 r/min
• Pump Lift: 10-16m
• Height of Pump: 1.2m
• Net Weight: 290 kg

Mud Pump Structure:

Method of Operation:

(Place the vertical mud pump upright or tilted in the liquid. Make sure the pump case is completely submerged in water. In addition, the motor part can not be immersed in water.)

Tips: Mud Pump Troubleshooting

• The pump vibrates. Pump shaft and diesel engine (or motor) different center, impeller unbalance, bearing damage. Solution: adjust the concentricity, the impeller for balance test, replace the bearing.
• Quick wear of pump. Poor construction environment, long conveying distance and long water inlet pipe. Solution: replace the sand field, add the afterburner unit, shorten the length of the inlet pipe to reduce cavitation.
• The pump cannot absorb water. The perfusion water is not enough, the air in the pump can not be discharged, the suction pipe leakage, the front lining plate and the impeller gap is large. Solution: continue to pour water, check whether the pipeline leaks, adjust the clearance between the impeller and the front lining plate.
