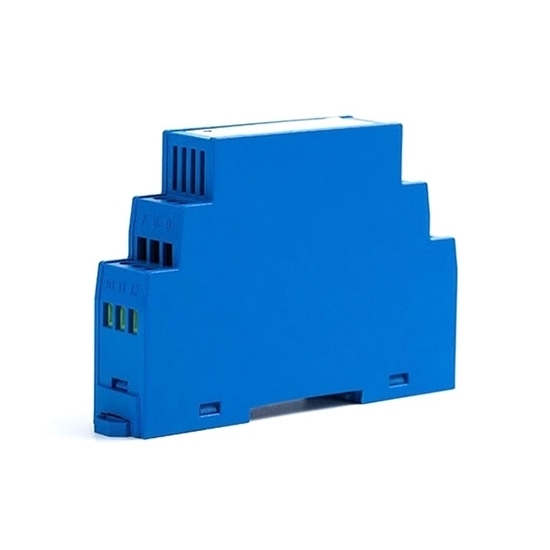

Isolated DC Voltage Sensor for Ripple Voltage 10mV to 1000V

5 out of 5 based on 2 reviews | Write a review

$141.96

DC voltage sensor is a special voltage sensor for unidirectional ripple DC voltage measurement. It has a measuring range from DC 10mV/50mV/75mV/5V/150V/300V/500V to 1000V, output signal 0-5V/0-10V/0-20mA/4-20mA, supply voltage DC 12/24V, IP20 and DIN rail installation. Isolated DC voltage transducer uses modulation and demodulation technology to achieve input/output/power supply isolation.

Measuring Range *
Power Supply *
Output Signal *
Isolation Features *

SKU: ATO-VOS-RDC1000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
PDF Catalog

DC voltage sensor has measuring range of 10mV/50mV/75mV/5V/50V/150V/200V/300V/400V/500V/750V to 1000V.

Specification:

Model	ATO-WBV332U01-S	ATO-WBV332U05-S	ATO-WBV334U01-S	ATO-WBV334U05-S
Shipping weight	1kg
Measuring range of input voltage *	DC 0-10mV ~ 0-1000V
Short-time overload	2 times of nominal input voltage, 1s in duration, interval time 10s, repeat 10 times
Linear measurement range	0% ~ 120% measuring range (0-10V output, 0% ~ 100% measuring range)
Input impedance	When Ux＞1V, Ri=Ux*10kΩ/V; when Ux≤1V, Ri≥1MΩ
Output signal *	DC 0-5V, 0-10V (only for power supply DC 24V)	DC 0-5V, 0-10V (only for power supply DC 24V)	DC 0-20mA, 4-20mA	DC 0-20mA, 4-20mA
Power supply *	DC 12V±10%, 24V±10%
Accuracy	0.2%F.S.
Load capacity	10mA	10mA	≤300Ω	≤300Ω
Response time	≤350ms
Temperature drift	200*10^-6/℃
Static current	≤12mA	≤30mA	Output 0-20mA: ≤16mA Output 4-20mA: ≤20mA	Output 0-20mA: ≤29mA Output 4-20mA: ≤33mA
Isolation features *	Isolation between input and output (output terminals provides power supply)	Isolation between input, output and power supply	Isolation between input and output (output terminals provides power supply)	Isolation between input, output and power supply
Isolation voltage	DC 2.5kV, 1mA, 1 min
Work temperature	-25~+70℃
Storage temperature	-25~+70℃
Protection features	Surge: 2kV Electrostatic discharge: 6kV/8kV Electrical fast transient burst: 2kV
Protection class	IP20
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS
Wiring	Terminal connection
Installation	DIN rail (NS35/7.5, NS35/15, EN50022)

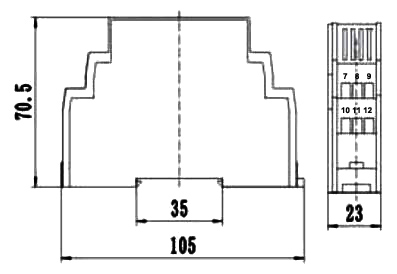

DC voltage sensor for ripple voltage 10mV to 1000V dimensional drawing (unit: mm):

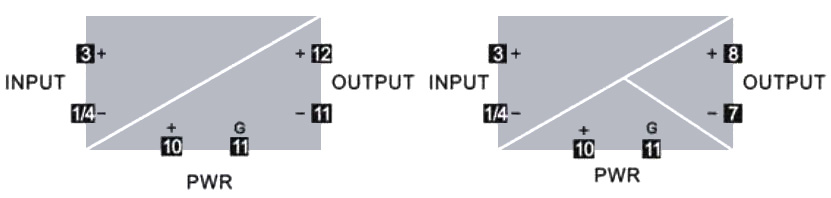

DC voltage sensor for ripple voltage 10mV to 1000V wiring diagram:
(The left diagram is for isolation between input and output, the right diagram is for isolation between input, output and power supply. 1: U≤600V, 4: U＞600V)

Tips: What is ripple voltage and why should we measure ripple voltage?
Ripple voltage refers to the power frequency AC voltage contained in the output DC voltage. The DC voltage should have been a fixed value, but it is often obtained by rectifying and filtering the AC voltage. Since the filtering is not thorough, there will be residual AC components. Even if it is powered by battery, ripple voltage will be produce by the fluctuation of the load. In fact, even the best reference voltage source device has ripples in its output voltage. The ripple voltage generated by the rectification will cause errors in the measured DC voltage and instability of the test power supply. Therefore, in the factory and acceptance test of DC high-voltage test equipment, the voltage ripple coefficient must be measured. According to the rules, the ripple coefficient S of DC voltage cannot be greater than 3%.

Existing reviews of Isolated DC Voltage Sensor for Ripple Voltage 10mV to 1000V

Isolated DC voltage measurement

I am looking for isolated DC voltage measurement up to 900V DC between input and output, the input supply voltage is 12V, and the output measurement signal is 0 to 12 or 0 to 5V. I noticed that you only have 24V power supply options for this type of configuration. Any suggestions?

From: Syrillic | Date: 02/04/2025

Was this review helpful? Yes No (0/0)

ATO Responded

You can choose our ATO-WBV332U05-S, which can be made into a 12V version. Please note it when placing an order.

Pretty good

I recently acquired the Isolated DC Voltage Sensor for Ripple Voltage ranging from 10mV to 1000V, and it has proven to be a valuable addition to my electronics toolkit. It offers a wide measuring range. I think it is very reliable.

From: Ryan | Date: 26/10/2023

Was this review helpful? Yes No (0/0)
