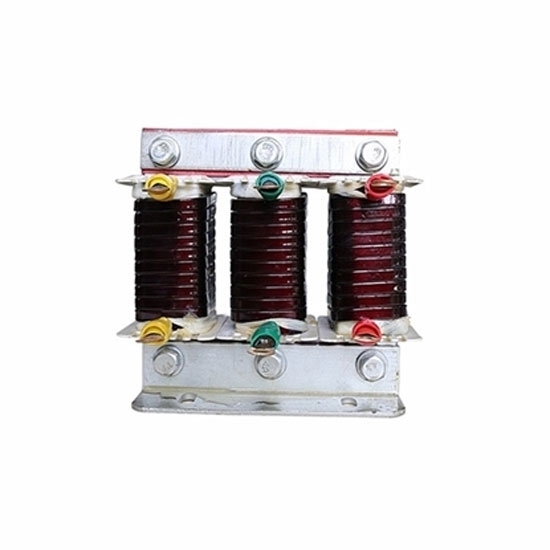

    75 hp (55 kW) AC Line Reactor, 3 Phase Output

    5 out of 5 based on 1 reviews | Write a review
    $583.46
    The 150 amps AC line reactor operates at a frequency of 50/60 Hz, output3 phase. The material is divided into two types, copper and aluminum, power 75 hp (55 kW), strong anti-rust ability and good insulation effect.
    SKU: ATO-OLR-055
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days
    3 phase output line reactor has voltage of 220V, 380V, 400V, 410V, 440V, 460V or 480V, 75 hp or 55kW, 50A for vfd, work freqency 50/60Hz. Affordable price, with safety and reliability.

    55 kW 3-Phase Output Line Reactor Specifications

    Basic Model ATO-OCR-0150-047U-0.4SA
    Recommended VFD Model GK3000-4T0550G (75 hp three phase VFD)
    Phase 3 Phase
    Power 75 hp (50 kW)
    Weight 17 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 150 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.047 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    3-Phase Output Line Reactor Mounting Dimension

    15hp (11kW) 3 phase line reactor

    Dimension(±5mm)
    L D W W1 H A×B
    230 150 170 88 220 11×18

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram

    Tips: What are the advantages of ATO output line reactors?

    • Increase the output high-frequency impedance, reduce the high-frequency leakage current, and protect the inverter.
    • Effectively reduce the high dv/dt output of the IGBT and extend the life of the motor.
    • Suppress the harmonic current output by the inverter.
    • Compensate for the influence of long-line distributed capacitance and extend the distance between input and output.
    • Reduce the noise of the motor.
    Existing reviews of 75 hp (55 kW) AC Line Reactor, 3 Phase Output
    A cheap and reliable 3 phase output reactor
    Output line reactor has been received, I am deeply attracted by this beautiful appearance. I have been looking for a 75 hp copper output reactor.
    I bought one with a terminal. It meets my expectations and is trustworthy.
    From: Martines | Date: 08/11/2018
    Was this review helpful? Yes No (0/0)
    Load more reviews...
