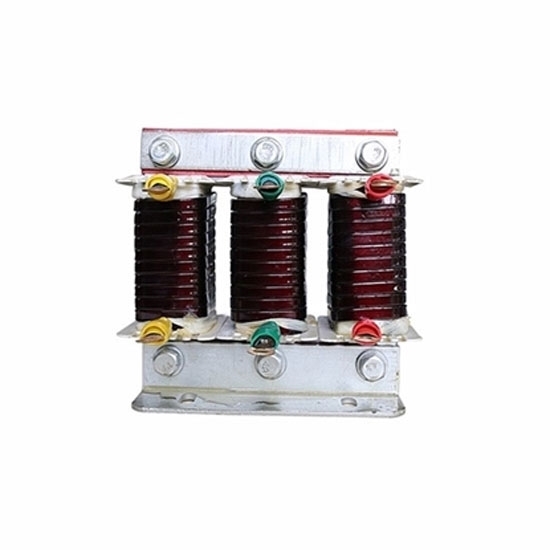

    25 hp (20 kW) AC Line Reactor, 3 Phase Output

    5 out of 5 based on 1 reviews | Write a review
    $497.54
    25 hp output vfd line reactor, rated current 50 amps, 3 phase, has good insulation and good moisture-proof effect, work frequency 50/60Hz. Easy and quick installation, low prices direct from the manufacturer.
    SKU: ATO-OLR-020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    25 hp output line reactor is used to extend the effective transmission distance of the inverter, 50A. Materials are divided into copper and aluminum, effectively suppress the instantaneous high voltage generated when the IGBT module of the inverter is switched, reduce the noise of the motor.

    Line Reactor for VFD Specifications

    Basic Model ATO-OCR-0050-0M14-0.4SC
    Recommended VFD Model GK3000-4T0185G (25 hp three phase VFD)
    Phase 3 Phase
    Power 25 hp (20 kW)
    Weight 11 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 50 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.14 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    3-Phase Output Line Reactor Mounting Dimension

    2hp 3 phase output reactor

    Dimension(±5mm)
    L D W W1 H A×B
    155 95 140 76 135 6×15

    25 hp 3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram

     How to solve the screw extraction of ascending flange base of high voltage bushing of line reactor?

    The vibration frequency of body is not in line with that of grading ring. Owing to the damping of transformer oil, grading ring has a low vibration frequency. And owing to single point welding and aluminum sheet welding, it has a poor mechanical strength. The long-term operation, the vibration brought by the inconsistent vibration frequency of earth tag of line reactor (aluminum, welding) and grading ring causes metal fatigue and cracks. Solution: fix ascending flange base and body to reduce free-running vibration.
