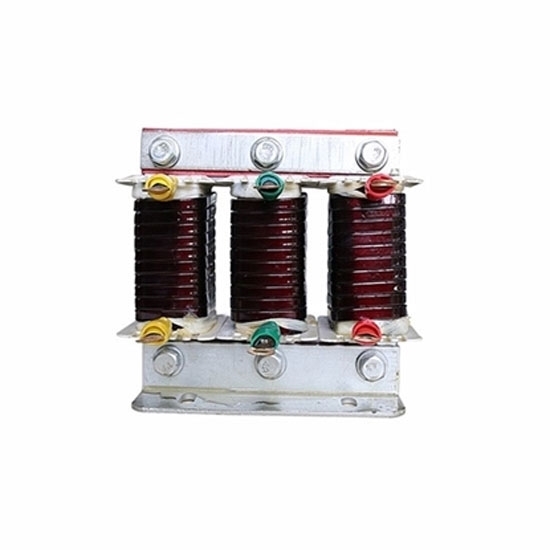

    10 hp (7.5 kW) AC Line Reactor, 3 Phase Output

    $295.86
    The 10 hp (7.5 kW) AC vfd line reactor at a comfartable price, with rated current 20A, three phase output, work voltage 380V, line reactor coil adopts F and H class insulation system, which greatly improves the reliability of long-term operation.
    SKU: ATO-OLR-7d5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3 pole 10 hp (7.5 kW) with work frequency 50/60Hz, work voltage with 220V, 380V, 400V, 410V, 440V, 460V or 480V for selection, rated current 10A, for vfd. Excellent quality and reasonable price.
    3-Phase Line output Reactor Specifications

    Basic Model ATO-OCR-0020-0M35-0.4SC
    Recommended VFD Model GK3000-4T0075G (10 hp three phase VFD)
    Phase 3 Phase
    Power 10 hp (7.5 kW)
    Weight 3.7 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 20 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 0.35 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

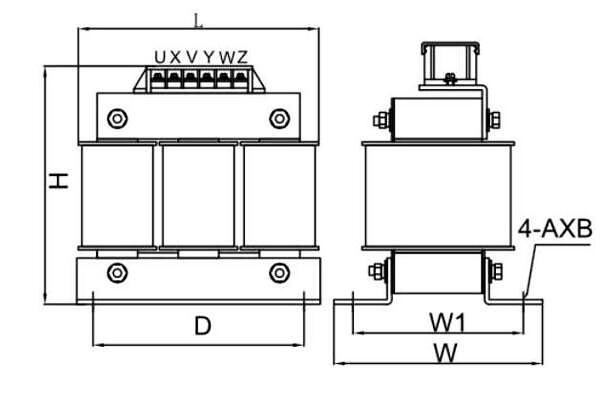

    7.5 kW 3-Phase Output Line Reactor Mounting Dimension

    2hp 3 phase output reactor

    Dimension(±5mm)
    L D W W1 H A×B
    110 90 95 70 130 6×11

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram.

    Tips: How to Maintain Line Reactor?

    Prevention of oil leakage: the oil tank of oil-immersed line reactor is filled with line reactor oil and oil-immersed line reactor is sealed with grease-proof rubber elements pressed by fastener in assembly. Poor sealing is the main cause for oil leakage of Line reactor, so user should pay attention it in maintenance.

    Wetting prevention of line reactor: as a high voltage equipment, line reactor should have a good insulation. Oil-immersed type reactor is easy to be wetted, so wetting prevention is one of the main measures in maintenance of line reactor.

    Oil replacement and drying treatment of line reactor: if the long idle time or operation time or other nature and human factors cause insulation deterioration of line reactor, water inflow or oil deterioration, oil replacement and drying treatment should be conducted to line reactor. Of line reactor: lift the body of line reactor out, drain sump oil, wash oil tank, and wash the greasy dirt on the body of line reactor if any. After drying, fill line reactor with oil and replace all grease-proof rubber seals The line reactor can be operated only after passing the test.
