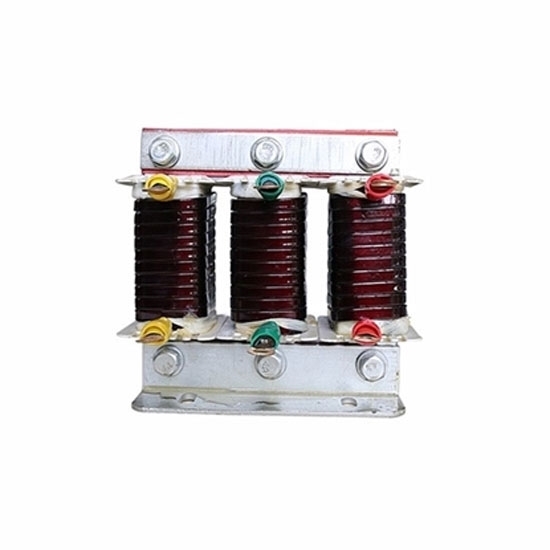

    2 hp (1.5 kW) AC Line Reactor, 3 Phase Output

    5 out of 5 based on 2 reviews | Write a review
    $231.36
    VFD Line reactor for sale, 3 phase, 5 Amps, 2 hp output line reactor, 220V, 380V, 400V, 410V, 440V, 460V or 480V for choice. The conductor material of the reactor is mainly copper or aluminum, and the product is exquisitely made, has a long service life and is easy to operate.
    *
    *
    SKU: ATO-OLR-1d5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3-phase AC output line reactor power rated current 5A, available at 50/60Hz working frequency, choose from 380V, 220V, 240V, 400V, 415V, 440V, 460V or 480V, long life span and high efficiency, low price and high quality.

    3-Phase Line Output Reactor Specifications

    Basics Model ATO-OCR-0005-1M40-0.4SC
    Recommended VFD Model GK3000-4T0015G (2 hp three phase VFD)
    Phase 3 Phase
    Power 2 hp (1.5 kW)
    Weight 2.5 kg
    Technical Parameters Work Valtage 380V (Optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/ 60Hz
    Rated Current 5 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 1.4 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    2 hp 3-Phase Output Line Reactor Mounting Dimension

    2hp 3 phase output reactor

    Dimension(±5mm)
    L D W W1 H A×B
    110 90 95 70 130 6×11

    3-Phase Output Line Reactor Circuit Diagram

    3 phase output line reactor circuit diagram

    Tips: Functions of 3-Phase Line output Reactor

    1. Capacitance effect on light no-load or light load lines to reduce transient overvoltage of power frequency.
    2. Improve the voltage distribution on the long transmission line.
    3. Make the reactive power in the line to be balanced as far as possible in the light load, prevent the irrational flow of reactive power and reduce the power loss on the line.
    4. Reduce the steady-state voltage of the power frequency on the high-voltage bus when the large unit is parallel with the system, so that the generator can be tied at the same time.
    5. Avoid the self-excited resonance phenomenon that may occur in the long line of the generator belt.
    6. When using the neutral point of the reactor through the small reactance grounding device, the reactor.
