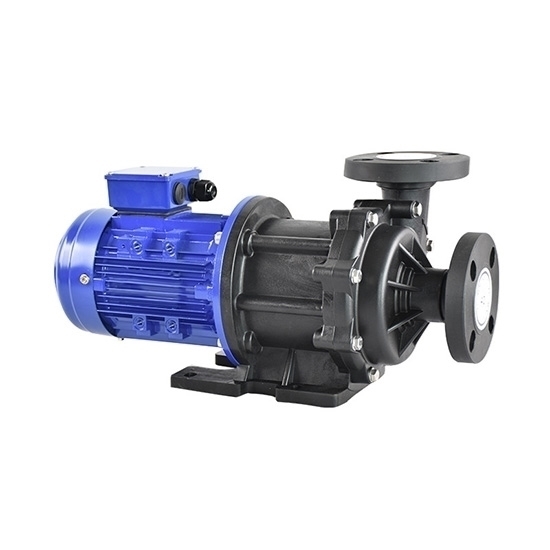

    5 HP (3.7 kW) Magnetic Drive Pump

    $3,126.51
    Magnetic drive centrifugal pump with 5 hp (3.7 kW) power and reasonable price for sale online. Shaft material of mag drive pump adopts ceramic or silicon carbide. The proportion of specific gravity reached 1.2. Magnetic drive pump widely used in chemical industry and pharmaceutical industry.
    *
    SKU: ATO-MDP-5HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Magnetic pump without seal, can achieve zero leakage, especially suitable for conveying flammable, explosive, corrosive liquid. This design prevents leakage of hazardous or volatile fluids, making 5 hp magnetic drive pump suitable for handling corrosive, toxic, or environmentally sensitive materials in industries such as chemical processing, pharmaceuticals, and wastewater treatment.

    Features:

    • ETFE (carbon-fiber reinforced) wetted-end material.
    • The discharge head is 34m.
    • Able to handle many types of chemical and temperature up to 90 ℃.
    • Available in flange connections.

    Specification:

    Model 405PW-F-ACV5-LL
    Specific Gravity 1.2
    Frequency 50Hz, 60Hz
    Rated Voltage 3-phase 380V (please contact us for other voltages)
    Pump performance at specific point (M-L/min) 50Hz 24.5-390
    60Hz 20.5-390
    Motor Output 5 HP (3.7 kW)
    Flange Size 40 mm (outlet); 50 mm (inlet)
    Casing Material ETFE
    Shaft Material ceramic
    Bearing Material carbon
    O-ring Material FKM
    Interface Mode thread, flange


    Structure:

    PW-F magnetic drive pump structure


    Dimension (Unit: mm)

    PW-F magnetic drive pump dimension

    Model W H L a b c d e f
    405PW-F 260 270 688 326 200 158 208 130 89

    Tips: Advantages of Magnetic Drive Pump

    • Leak-Free Operation. The magnetic drive pump does not have a mechanical seal or packing, which eliminates the risk of leaks.
    • Low Maintenance. The magnetic drive pump has few moving parts, which require little or no maintenance.
    • Energy Efficiency. Magnetic drive pumps operate at low speeds and do not require large amounts of energy to generate the required flow and pressure.
    • High Reliability. The magnetic drive pump is a reliable pump that operates continuously without any downtime.
    • Silent Operation. Magnetic drive pump operates quietly, which makes them ideal for applications where noise levels need to be kept to a minimum.
    • Environmentally Friendly. The magnetic drive pump is an environmentally friendly pump that does not pollute the environment with oil or other lubricants.
