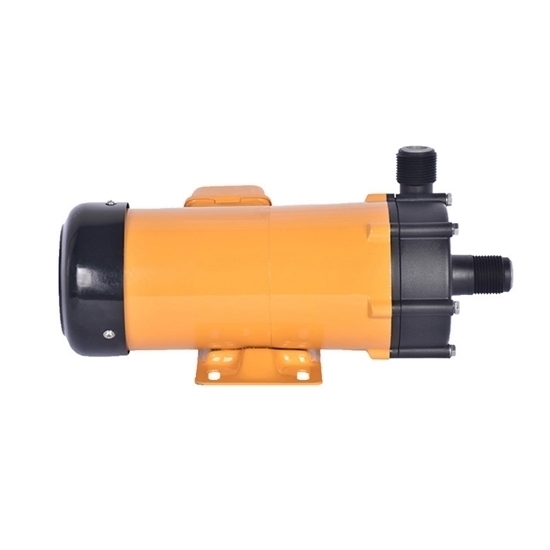

    0.3 HP (0.25 kW) Magnetic Drive Pump

    5 out of 5 based on 1 reviews | Write a review
    $832.95
    Reasonable price and high quality 0.3 hp mag drive water pump for sale online. Magnetic drive pump adopts standard connections available in hose, threads or union type. Magnetic drive pump with ceramic bearing and ceramic spindle as standard wearing parts to achieve long life expectancy. 50 Hz and 60 Hz are the frequency of magnetic pump.
    SKU: ATO-MDP-03HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    The 0.3 hp (0.25 kW) magnetic drive pump can realize the contactless synchronous transmission of power and transform the dynamic seal structure which is easy to leak into the static seal structure which is zero leakage.

    Features:

    • The motor is of solid TEFC construction and is painted with 2 parts epoxy paint.
    • Offering ceramic bearing and ceramic spindle as standard wearing parts to achieve long life expectancy.
    • Standard connections available in hose, threads or union type.

    Specification:

    Model 250PS-F
    Frequency 50Hz, 60Hz
    Rated Voltage 3-phase 380V (contact us for other voltages)
    Connection Method Hose (mm) Thread (") Flange (A)
    26×26 1×1 25×25
    Pump Performance at Specific Point 50Hz 50 L/min
    60Hz 50 L/min
    Rated Head 50Hz 16m
    60Hz 21m
    Motor Output 330W


    Dimension (Unit: mm)

    PS-F magnetic drive pump dimension

    Model W H L a b c d e f g
    250PS-F 156 165 365 70 100 195 110 66 70 43.5


    Application:

    Magnetic drive pump application

    Tips: How to Clean Magnetic Drive Pump?

    • Shut off the pump. Turn off the power supply to the pump to prevent any accidental activation during the cleaning process.
    • Disassemble the pump. Remove the pump's casing and impeller.
    • Clean the pump parts. Clean the pump parts with a suitable cleaning solution. Use a soft-bristled brush or a cloth to remove any dirt, debris, or other contaminants.
    • Rinse the pump parts. Rinse the pump parts with clean water to remove any remaining cleaning solution. Make sure to rinse thoroughly to ensure no residue is left behind.
    • Dry the pump parts. Dry the pump parts with a clean cloth or compressed air.
    • Reassemble the pump. Reassemble the pump in the reverse order of disassembly.
    Existing reviews of 0.3 HP (0.25 kW) Magnetic Drive Pump
    Zero Leakage Design
    Magnetic drive pumps use high-sealing magnetic transmission, eliminating the need for traditional mechanical seals, effectively preventing leaks, reducing maintenance, and environmental risks.
