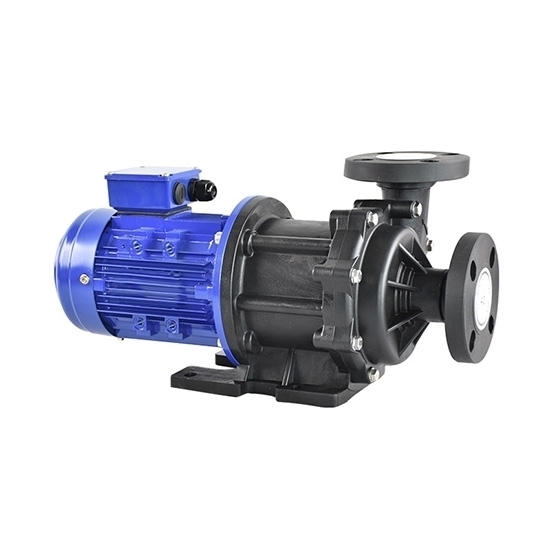

    2 HP (1.5 kW) Magnetic Drive Pump

    $2,190.12
    Economical price magnetic drive pump with 2 hp (1.5 kW) for sale online. Magnetic pump with ETFE casing material and FKM O-ring material, achieve pump long life expectancy. Magnetic drive centrifugal pump adaptable to IEC standard motor. This type of pump is suitable forchemical industry and metal industry.
    *
    SKU: ATO-MDP-2HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 hp (1.5 kW) magnetic drive pump without seal, can achieve zero leakage, especially suitable for conveying flammable, explosive, corrosive liquid. It is used to require that the pump can only leak or even not leak the occasion.

    Features:

    • ETFE (carbon-fiber reinforced) wetted-end material.
    • The discharge head is 34m.
    • Able to handle many types of chemical and temperature up to 90 ℃.
    • Available in flange connections.

    Specification:

    Model 352PW-F-ACV5-LL
    Specific Gravity 1.2
    Frequency 50Hz, 60Hz
    Rated Voltage 3-phase 380V (please contact us for other voltages)
    Pump performance at specific point (M-L/min) 50Hz 23-100
    60Hz 27-100
    Motor Output 2 HP (1.5 kW)
    Flange Size 32 mm (outlet); 32 mm (inlet)
    Casing Material ETFE
    Shaft Material ceramic
    Bearing Material carbon
    O-ring Material FKM
    Interface Mode thread, flange


    Structure:

    PW-F magnetic drive pump structure


    Dimension (Unit: mm)

    PW-F magnetic drive pump dimension

    Model W H L a b c d e f
    352PW-F 160 242 505.5 222.5 132 155 130 120 78

    Tips: Can Magnetic Drive Pump Runs Dry?

    One of major limitations of magnetic drive pumps is the risk associated with running dry. Because the pumped liquid will act as lubricant and coolant, in case of dry run, the bearing and some other parts could overheat and eventually become damaged. However, some magnetic drive pumps are designed to handle short periods of dry running, but it's essential to check the specifications before operating the pump without liquid.
