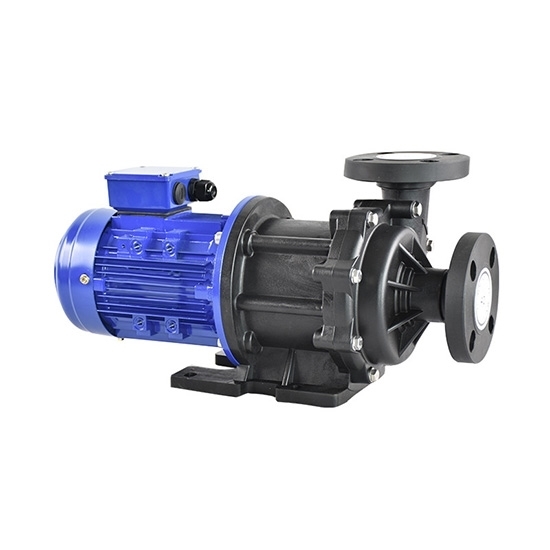

    0.5 HP (0.37 kW) Magnetic Drive Pump

    5 out of 5 based on 1 reviews | Write a review
    $1,488.81
    High quality and reasonable price magnetic drive pump with 0.37 kW for sale online. Magnetic pump with ETFE casing material and carbon bearing material. Magnetic drive water pump widely used in chemical industry, pharmaceutical industry and metal industry.
    *
    SKU: ATO-MDP-05HP
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Magnetic driven pump is a new type of non-sealed pump which adopts the principle of permanent magnet transmission technology to realize the contactless transfer of torque. 0.5 hp (0.75 kW) magnetic drive centrifugal pump adopts ETFE material of casing.

    Features:

    • ETFE (carbon-fiber reinforced) wetted-end material.
    • The discharge head is 34m.
    • Able to handle many types of chemical and temperature up to 90 ℃.
    • Available in flange connections.

    Specification:

    Model 350PW-F-ACV5-LL
    Specific Gravity 1.2
    Frequency 50Hz, 60Hz
    Rated Voltage 3-phase 380V (contact us for other voltages)
    Pump performance at specific point (M-L/min) 50Hz 10-80
    60Hz 11-80
    Motor Output 0.5 HP (0.37 kW)
    Flange Size 25 mm (outlet); 25 mm (inlet)
    Casing Material ETFE
    Shaft Material ceramic
    Bearing Material carbon
    O-ring Material FKM
    Interface Mode thread, flange


    Structure:

    PW-F magnetic drive pump structure


    Dimension (Unit: mm)

    PW-F magnetic drive pump dimension

    Model W H L a b c d e f
    350PW-F 157 257 472 232.5 130 161 130 115 88

    Tips: What is Specific Gravity?

    Specific gravity is also called relative density. The specific gravity of a solid or liquid is the ratio of the density of the substance (in a fully dense state) to the density of pure H2O at 3.98 ℃ at standard atmospheric pressure. The specific gravity of a gas is the ratio of the density of the gas to the density of air under standard conditions. The specific gravity of a liquid or solid tells whether it sinks or floats in another fluid. It is commonly used in industries such as metallurgy, geology, and chemistry to determine the purity and quality of materials.
