35mm Tapered Roller Bearing, Single Row

ATO 35mm tapered roller bearing comes with an inner diameter of 35mm, static load rating of 25.8kN, and 650 rpm limiting speed. Sophisticated bearing provides excellent quality, fine production of details, more stable performance and higher work efficiency.

Specification

• Model: ATO-30207
• Inner diameter: 35mm
• Outer diameter: 72mm
• Width: 18.25mm
• Accuracy class: P6
• Limiting speed: 650 rpm
• Bearing basic dynamic load rating: 25.8 kN
• Rated static load: 163 kN
• Bearing material: Bearing steel

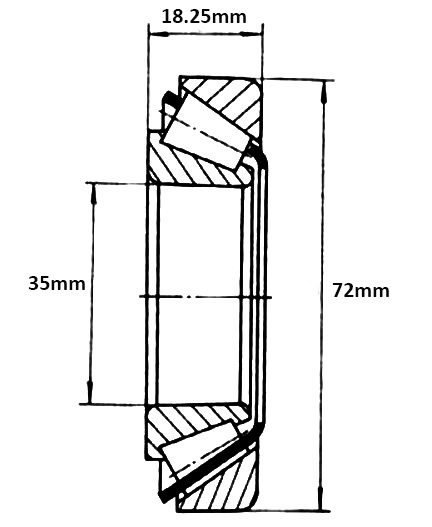

Dimension (mm)

Application

Tips: How do you check a taper roller bearing?

Separable bearings such as tapered roller bearings may be checked by individually examining their rolling elements and the outer ring raceway. Large bearings cannot be rotated manually; however, the rolling elements, raceway surfaces, cages, and contact surface of the ribs should be carefully examined visually.
