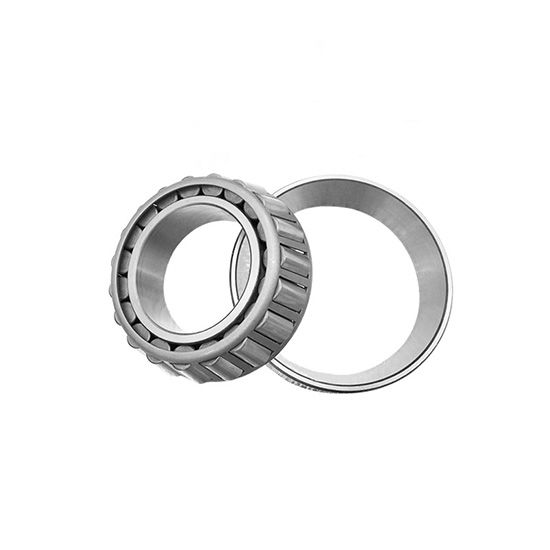

15mm Tapered Roller Bearing, Single Row

The reliable tapered roller bearing comes with inner diameter of 15mm, P6 accuracy, and 650 rpm limiting speed. Single row tapered roller bearing features low friction and low noise that provide operational reliability.

Specification

• Model: ATO-30202
• Inner diameter: 15mm
• Outer diameter: 35mm
• Width: 11.75mm
• Accuracy class: P6
• Limiting speed: 650 rpm
• Bearing basic dynamic load rating: 25.8 kN
• Rated static load: 163 kN
• Bearing material: Bearing steel

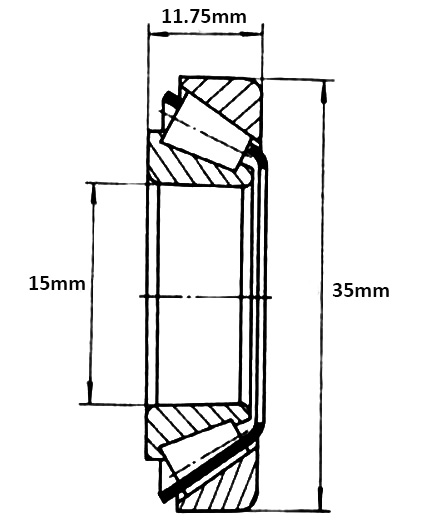

Dimension (mm)

Application

Tips: What is a tapered roller bearing?

Tapered roller bearings are separable bearings, and the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into different structural types such as single row, double row and four row tapered roller bearings according to the number of rows of rollers installed. Single row tapered roller bearings can bear radial loads and axial loads in one direction. When the bearing bears radial load, an axial component force will be generated, so another bearing that can bear the axial force in the opposite direction is needed to balance it.
