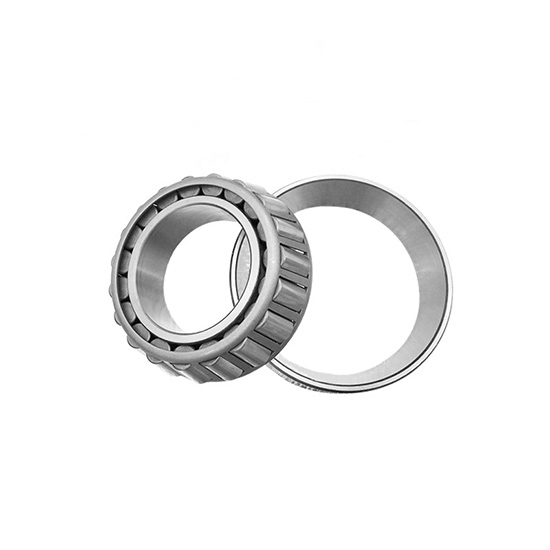

25mm Tapered Roller Bearing, Single Row

High-speed tapered roller bearing comes with an inner diameter of 25mm, static load rating of 25.8kN, and 650 rpm limiting speed. High-speed tapered roller bearing is widely used in machine tools, paper-making machinery, mechanical gears, motors, wind generators, steel equipment and mining equipment, etc.

Specification

• Model: ATO-30205
• Inner diameter: 25mm
• Outer diameter: 52mm
• Width: 16.25mm
• Accuracy class: P6
• Limiting speed: 650 rpm
• Bearing basic dynamic load rating: 25.8 kN
• Rated static load: 163 kN
• Bearing material: Bearing steel

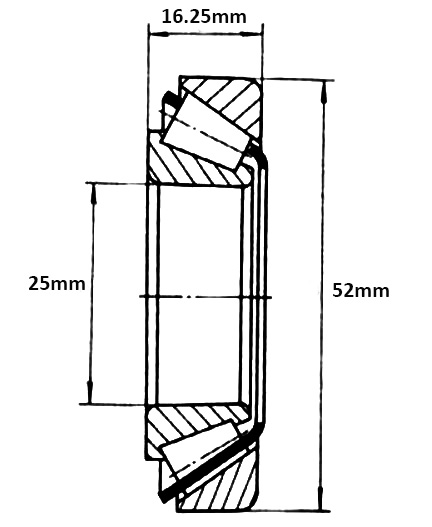

Dimension (mm)

Application

Tips: Do tapered roller bearings need adjusting?

When adjusting tapered bearings against each other, the bearings must be rotated so that the roller ends are in correct contact with the guide flange of the inner ring. At initial assembly, other factors determine the non-operating clearance or preload.
