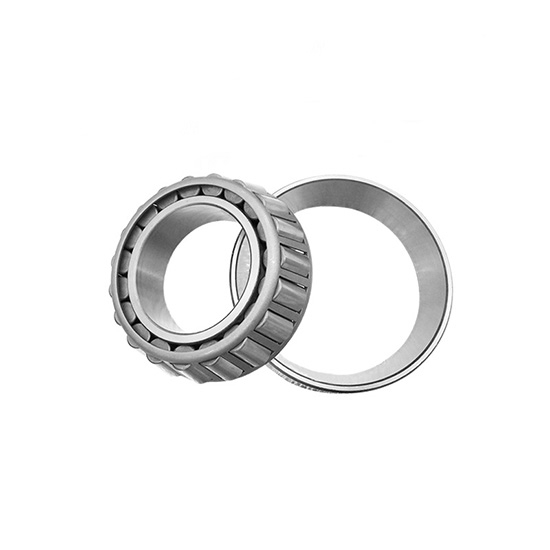

20mm Tapered Roller Bearing, Single Row

The reliable tapered roller bearing comes with inner diameter of 20mm, static load rating of 25.8kN, P6 accuracy, and 650 rpm limiting speed. The built-in rollers of roller bearings are thin and long, have better load-carrying capacity, longer life and are safer.

Specification

• Model: ATO-30204
• Inner diameter: 20mm
• Outer diameter: 47mm
• Width: 15.25mm
• Accuracy class: P6
• Limiting speed: 650 rpm
• Bearing basic dynamic load rating: 25.8 kN
• Rated static load: 163 kN
• Bearing material: Bearing steel

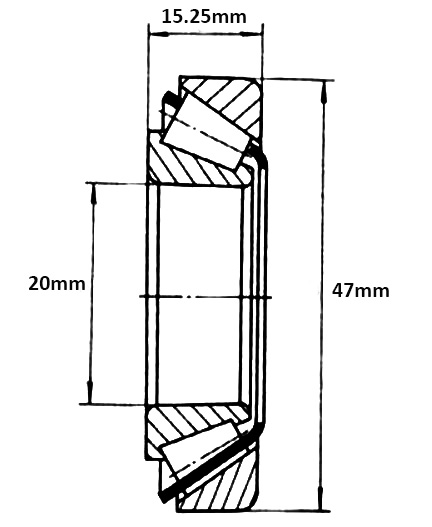

Dimension (mm)

Application

Tips: How do I choose a tapered roller bearing?

The angle formed by the line of contact between the cup and rollers and that of the bearing's bore axis determines the type of load for which the bearing is well-suited. The larger the angle, the better the bearing is able to handle thrust loads, but the capacity to handle radial loads is proportionally reduced.
