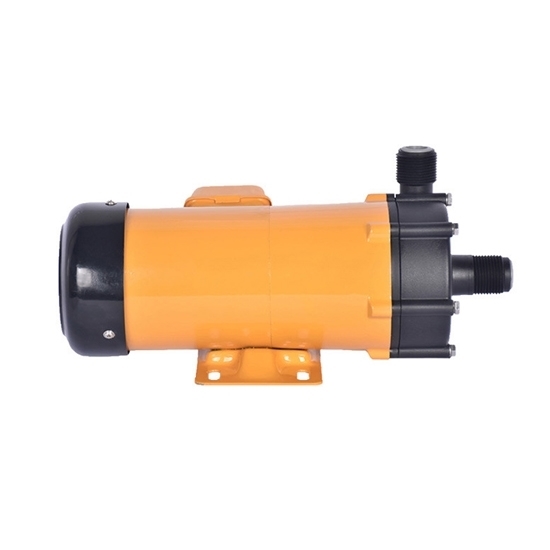

0.2 HP (0.15 kW) Magnetic Drive Pump

Mag drive water pump offering ceramic bearing and ceramic spindle as standard wearing parts to achieve long life expectancy. 0.2 hp magnetic drive pump often used in applications where leak prevention is critical, such as handling corrosive chemicals, acids, or volatile substances.

Features:

• The motor is of solid TEFC construction and is painted with 2 parts epoxy paint.
• Offering ceramic bearing and ceramic spindle as standard wearing parts to achieve long life expectancy.
• Standard connections available in hose, threads or union type.

Specification:

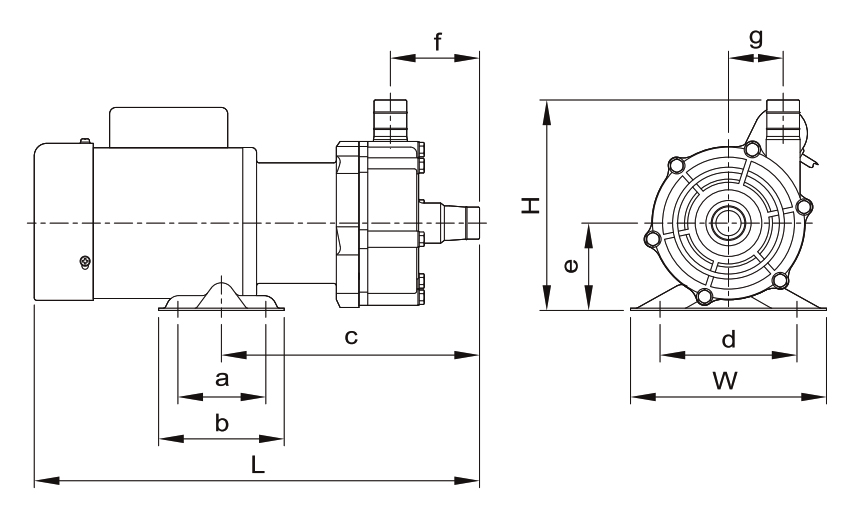

Dimension (Unit: mm)

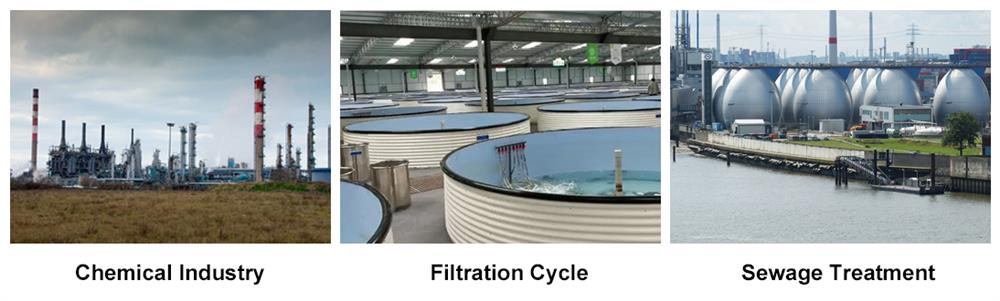

Application:

Tips: Magnetic Drive Pump Troubleshooting

• Loss of prime. Potential causes include a leaking suction line, air or gas in the fluid, a leaking foot valve, foreign matter in the impeller, or a leaking valve. Additionally, the foot valve or suction opening may not be sufficiently submerged, or the suction lift may be too high.
• Excessive power consumption. Check for excessive flow, verify that the head is not lower than the rating, and confirm that the specific gravity and viscosity are not too high.
• Vibration or noise. Check for foreign objects in the impeller. Ensure the motor and piping are properly secured. Look for drive magnet rubbing.
