What is a Relay Tester?

Relays are a vital component in modern electrical and electronic systems. They are widely used in various devices and systems as electrical switches, controlling the switching of large currents by small currents. However, in order to ensure that the relays can function properly in actual work, regular testing and maintenance are essential. At this time, the relay tester is particularly important.

A relay tester is an instrument used to detect and verify the function of relays. It can help users check whether the relays are working properly under expected conditions, including the coil resistance, contact status of the relays, and the switching function of the relays. Relay testers usually have a variety of test functions, which can simulate the actual application environment of the relays under different working conditions to ensure their reliability and stability.

Main functions of relay testers

1. Switch function test: The relay tester can simulate the control signal and detect whether the relay can correctly switch the switch state when receiving the control signal. The tester will activate the coil of the relay and observe whether the relay contacts open and close according to the design requirements.
2. Coil resistance measurement: The relay tester can measure the resistance value of the relay coil. This is essential to check whether the coil is open or short-circuited. The coil resistance measurement can help determine whether the relay is still working properly.
3. Contact status check: The tester can detect the conduction of the relay contacts. When the relay is in the activated and inactive states, check whether the contacts can be properly turned on or off to ensure that the relay switching function is normal.
4. Working environment simulation: Relay testers can usually simulate the actual working environment and test the performance of the relay under various conditions by providing different control signals. This function can help users understand the reliability of the relay in actual applications.

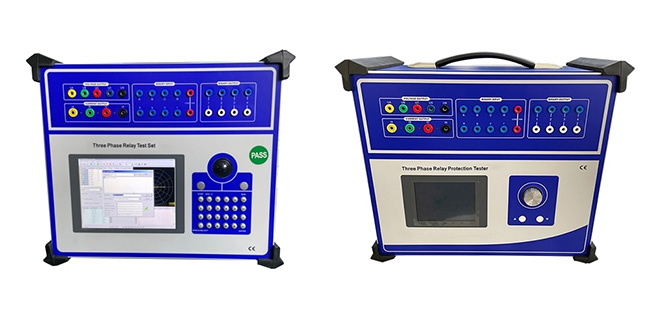

Types of relay testers

Manual relay tester: Manual relay testers require users to manually operate and perform different tests by adjusting the control switches and knobs on the tester. This type of tester is suitable for simple testing tasks, but may require higher operating skills.

Automatic relay tester: Automatic relay testers have automatic testing and diagnostic functions, and can automatically perform various tests and generate test reports. This tester is usually equipped with advanced control systems and display interfaces, which are suitable for complex testing requirements and batch testing.

How to choose a relay tester

When choosing a suitable relay tester kit, you first need to decide the function based on the type of relay and test requirements. For basic switch function testing, manual testers are usually sufficient, but if more complex test tasks are involved, such as automated systems or situations that require detailed test reports, automatic testers may be more suitable. In addition, the tester's measurement range and accuracy must meet actual needs. For example, the resistance measurement range needs to cover the resistance value range of the tested relay to ensure the accuracy of the test results.

Another important consideration is ease of operation. Choosing a tester that is easy to operate can improve test efficiency, especially when testing is performed frequently. Automated testers generally provide better user experience and ease of operation. Finally, the durability and reliability of the tester cannot be ignored. High-quality testers can maintain stable performance and accurate test results over long-term use, ensuring the continued reliability of the testing process.

Relay testers play a key role in maintaining and diagnosing electrical systems. By accurately testing and verifying the function of relays, users can ensure the stability and reliability of electrical systems. Whether choosing a manual or automatic tester, understanding its functions and features and selecting according to actual needs are key steps to ensure the normal operation of relays.
