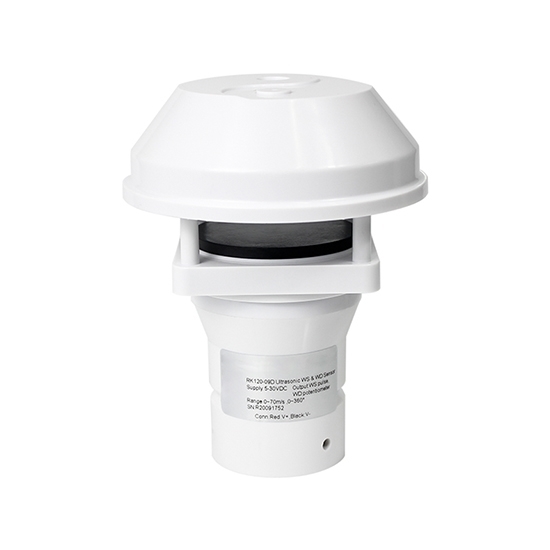

Ultrasonic Anemometer Sensor for Wind Speed & Direction, 70 m/s

5 out of 5 based on 2 reviews | Write a review

$1,143.38

Ultrasonic anemometer sensor for 0~70 m/s wind speed and 0~360° wind direction measurement. Testing accuracy speed ± 3%, direction ± 3°, wind speed output signal pulse, wind direction output signal potentiometer. Wind speed & direction sensor uses the time difference of ultrasonic waves in the air to measure air velocity and direction, easy use, good price.

Output Signal *

SKU: ATO-UAM-70

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Manufacturer price ultrasonic anemometer for sale online. Wind speed measurement 0~70 m/s, output signal pulse. Wind direction measurement angle 0~360 degree, output potentiometer signal. The ultrasonic wind speed & direction sensor is especially suitable for solar or battery powered environment with low power consumption requirements.

Measurement Specification

Model	ATO-RK120-09D
Item	Range	Resolution	Accuracy
Wind Speed	0-70 m/s	0.1 m/s	± 3%
Wind Direction	0~360°	1°	± 3°
Extreme Wind Speed	80 m/s	-	-

System Specification

Power Supply	DC 5-30V
Power Consumption	0.2W
Output Signal (Optional)	Wind speed: pulses
Output Signal (Optional)	Wind direction: potentiometer signal completely compatible with Davis Vantage Pro2 series
Operating Temperature	-30 ~ +70℃
Ingress Protection	IP65
Dimension	Ф 110*140mm
Net Weight	0.5 kg
Main Material	ASA

Features

Ultrasonic wind speed & direction anemometer uses a low-power chip, power consumption is only 0.2W, which is especially suitable for solar or battery-powered applications that require low power consumption.
Due to the adoption of new technology, the ultrasonic anemometer has a more compact structure, a smaller size, and is easy to use and portable.
This model of ultrasonic wind sensor is customized to be completely compatible with Davis Vantage Pro2 series weather station, can be directly connected to Davis ISS via RJ11 port.

Ultrasonic Wind Speed & Direction Anemometer Installation

There is rotary adjustable mounting holes at the bottom of the ultrasonic anemometer.

When installing the wind sensor, make sure the indicator on anemometer comply with the geographic north.

Installation of Ultrasonic Anemometer for Wind Speed & Direction, 60 m/s

Tips: How to install 70m/s ultrasonic anemometer correctly?

Positioning: generally, 70m/s ultrasonic anemometer is installed in a vertical installation pipe. Ensure the measurement on the same level.
For indoor use, the 70m/s ultrasonic anemometer can be used at anywhere. Directional installation to measure wind speed on different planes.
There are rotary adjustable mounting holes at the bottom of the 70m/s ultrasonic anemometer. When installing the wind sensor, ensure the indicator on the sensor comply with the geographic north.
The installation pipe needs 3 equally spaced holes, tapping M5 screws, position 7.5mm from the top of the pipe.

Existing reviews of Ultrasonic Anemometer Sensor for Wind Speed & Direction, 70 m/s

Reliable in extreme conditions

This 70 m/s wind speed and direction meter performs reliably in extreme conditions. Its durable design ensures continuous operation in high speed winds and inclement weather. After purchasing it, I am deeply satisfied with its performance and durability, making it a worthwhile investment.

From: Phoenix | Date: 23/11/2023

Was this review helpful? Yes No (0/0)

Operating environment of 70m/s ultrasonic anemometer

Can the 70m/s ultrasonic anemometer in ATO be used in a humid environment?

From: Mercedes | Date: 18/11/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, you can use it in humid environments.
