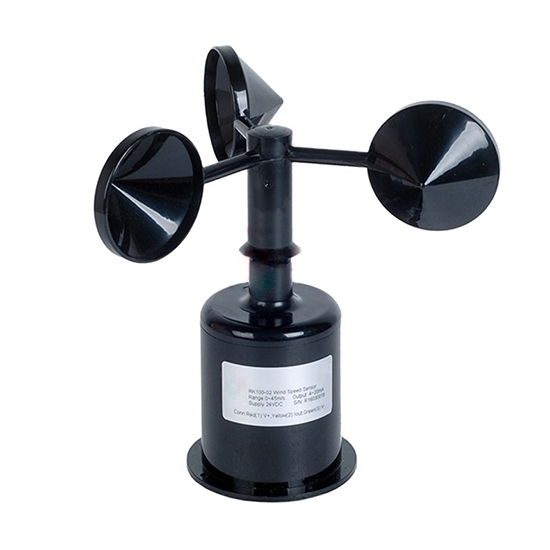

3-Cup Anemometer, 0~45 m/s Wind Speed Sensor, RS 485 Output

5 out of 5 based on 2 reviews | Write a review
$113.38
Buy 3-cup anemometer at economical price from ATO. Wind speed measurement range 0~45 m/s, limit velocity 50 m/s, output signal pulse/current 4-20mA/RS-485/voltage 0-5V for selection, supply voltage DC 5-24V or 12-24V. Wind speed sensor for measurement of air velocity, suitable for weather station and industrial/agriculture applications.
*
*
*
*
*
SKU: ATO-3CAM-045
30-day Returns
Free Shipping
Delivery date: 6-12 days

Three-cup anemometer for sale, measures 0-45 m/s wind speed, outputs pulse/current 4-20mA/RS-485/voltage 0-5V. The wind speed sensor is specifically designed to accurately and reliably measure air velocity under the adverse environmental conditions. The wind gauge outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation.

Specification

Model ATO-RK100-02
Output Signal (Optional) Pulses (PNP) 4-20mA 0-5V RS-485
Power Supply (Optional) DC 5V, 12-24V
Load Capacity >1kΩ, default high level: 5V <500Ω (typ 250Ω) >1kΩ -
Wind Speed Range 0~45 m/s
Accuracy ± (0.3 + 0.03V) m/s (V is the current wind speed)
Starting Threshold <0.5 m/s
Limit Wind Speed 50 m/s
Ingress Protection IP65
Operating Temperature -40 ~ +50℃
Cable Grade Nominal voltage: 300V, Temperature grade: 80℃
Net Weight 170g
Dimension Cup rotor: Ф 179mm, Height: 160mm
Main Material Carbon Fiber
Finish Polyester powder electrostatic spraying (black))
Storage Condition 10~50℃ @ 20%-90% RH

Features

  • The 3-cup anemometer is a sensitive wind speed sensor designed to measure air velocity and wind run.
  • Wind cups are made of carbon fiber material, with high intensity and low starting threshold.
  • The signal processing units are built in the housing shell. It can be widely used in meteorology, marine, environmental monitoring, weather station, airport, harbor, laboratory, industrial and agricultural areas.

3-Cup Anemometer Output Characteristics

  • Pulses Output

Characteristic transfer function:

F = 0, V = 0

F ≠ 0, V = 0.1 + 0.0875 × F

(where V = wind speed (m/s), F = output frequency (Hz) )

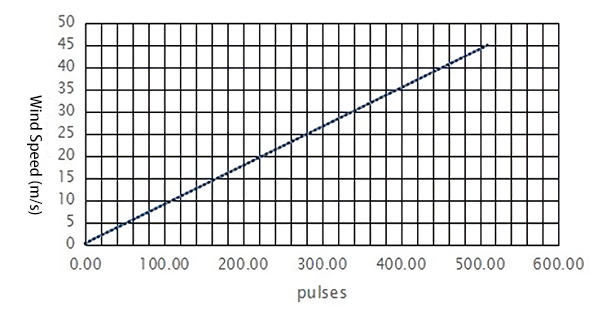

Pulses output diagram of 0-45 m/s 3-Cup Anemometer

  • Current Output

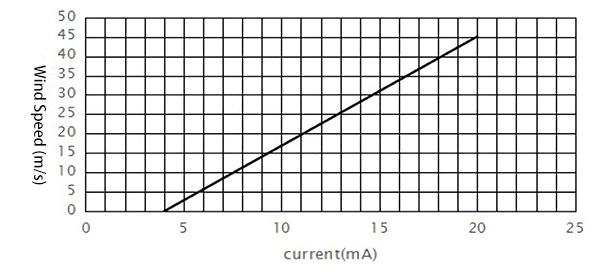

Current output diagram of 0-45 m/s 3-Cup Anemometer

  • Voltage Output

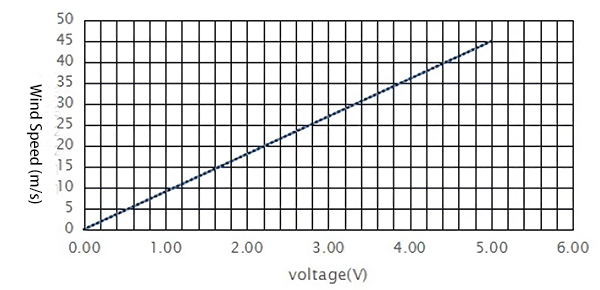

Voltage output diagram of 0-45 m/s 3-Cup Anemometer

  • RS-485 Output

lf the transmission distance is over 100m, please add a 120Q terminal matching resistances on the front endand back end of bus interface respectively. See the modbus communication protocol specification.

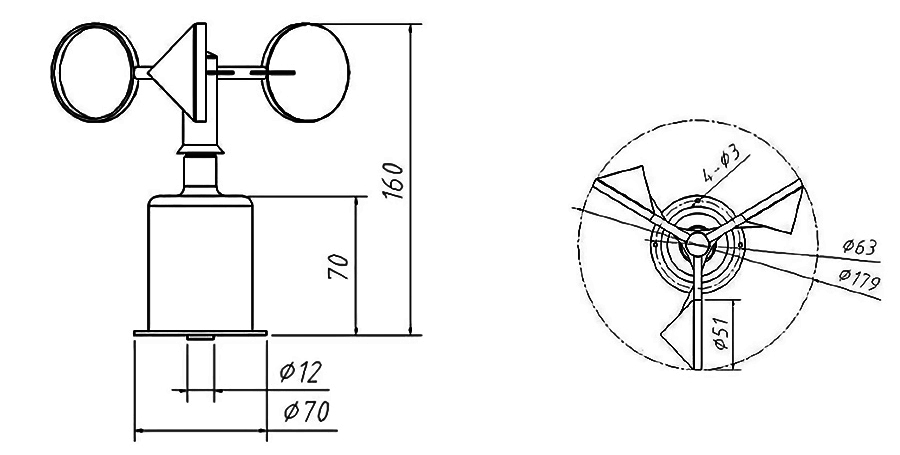

3-Cup Anemometer Dimension Diagram (Unit: mm)

Dimension diagram of 3-Cup Anemometer, 0~45 m/s Wind Speed, RS 485 Output

Tips: 0-5V output signal conversion calculation for 0-45m/s anemometer.

For example, 3-cup anemometer wind range is 0~45m/s, 0-5V output. When the output signal is 2V, calculate the current wind speed value.

The span of this wind speed range is 45m/s, expressed by a 5V voltage signal,
45m/s ÷ 5V = 9m/s /V, that is, a voltage of 1V represents a wind speed change of 9m/s.

The measured value is 2V - 0V = 2V * 9m/s /V = 18m/s. The current wind speed is 18m/s.

The calculation formula is:
Wind speed = 9*voltage, the unit of voltage value is V.
