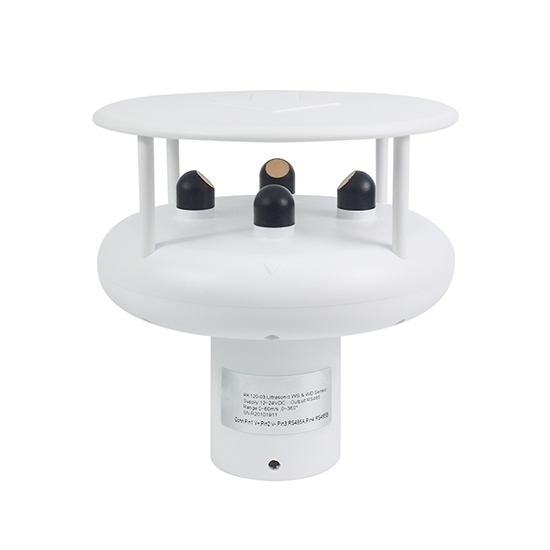

Ultrasonic Anemometer Sensor for Wind Speed & Direction, 60 m/s

5 out of 5 based on 2 reviews | Write a review

$1,097.23

Ultrasonic anemometer sensor for sale online, manufacturer price. Wind speed measurement range 0~60 m/s, wind direction 0~360°, power supply DC 12-24V, output signal RS232/RS485/4-20mA/0-5V for selection, ingress protection IP66. Full-digital wind speed sensor is widely used in weather station, laboratories, industry and agriculture, etc.

Wind Speed Range *
Output Signal *

SKU: ATO-UAM-60

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The ultrasonic anemometer sensor is a high-precision wind gauge, which is integrated by the ultrasonic wind speed and direction sensors. It can accurately and quickly detect the air velocity of 0-60 m/s and wind direction of 0-360°. Ultrasonic wind speed & direction anemometer can be widely used in meteorology, weather station, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Measurement Specification

Model	ATO-RK120-03
Item	Range	Resolution	Accuracy	Starting Threshold
Wind Speed (optional)	0-60 m/s, 0-45 m/s	0.01 m/s	≤10 m/s: ± 0.2 m/s >10 m/s: < ± 2% the current value	0.1 m/s
Wind Direction	0~360°	1°	± 3°	0.1 m/s
Atmospheric Pressure*	150-1100 hPa	0.1 hPa	± 1 hPa	-
Extreme Wind Speed	60 m/s	-	-	-

*Note: The atmospheric pressure measurement function is an optional configuration, please contact us if you need it.

System Specification

Power Supply	DC 12-24V
Power Consumption	＜1W (Heating not activated), <3W (Heating activated)
Output Signal (Optional)	RS232, RS485 (Modbus/NMEA-0183), 4-20mA, 0-5V (only for wind speed & direction)
Operating Temperature	-40 ~ +80℃
Ingress Protection	IP66
Heating Power	Automatically turn on when the ambient temperature is below 0℃
Electronic Compass	optional (Please contact us if you need it.)
Atmospheric Pressure	optional (Please contact us if you need it.)
Dimension	Ф 144*148mm
Net Weight	0.8 kg
Main Material	ASA

Features

Ultrasonic wind speed & direction anemometer is built-in signal processing unit, which can output a corresponding signal in response to user needs.
The ultrasonic wind speed and direction sensor has compact structure and lightweight, no moving parts, high-strength structural design, accurate and stable elements, low maintenance.
The air velocity and direction meter adapts to complex weather conditions. The surface has preservative treatment, strong anti-interference, automatic heating anti-frozen.

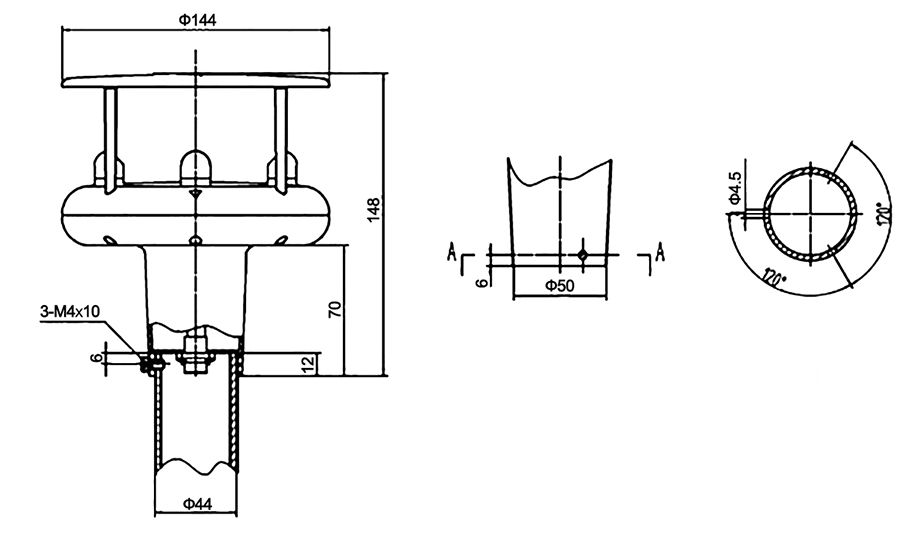

Ultrasonic Wind Speed & Direction Anemometer Dimension (Unit: mm)

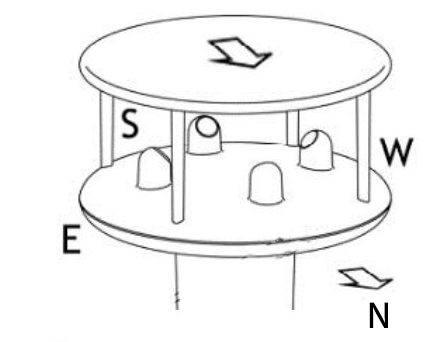

Ultrasonic Wind Speed & Direction Anemometer Installation

There is rotary adjustable mounting holes at the bottom of the ultrasonic anemometer.

When installing the wind sensor, make sure the indicator on anemometer comply with the geographic north.

Installation of Ultrasonic Anemometer for Wind Speed & Direction, 60 m/s

Tips: How to use 40 m/s ultrasonic anemometer correctly?

Do not install the ultrasonic anemometer on the same plane with any radar scanning device, and keep a distance of at least 2m.
lf the cable is not properly connected after cutting, or the cable shield is not well maintained, EMC (electromagnetic compatibility) may be reduced.
Ensure the continuous power supply of the 40m/s ultrasonic anemometer in operation.
Avoid turbulence caused by surrounding buildings, such as trees, power poles, tall buildings, etc., which can affect the ultrasonic anemometer. Accuracy of acoustic wind speed and direction sensor will be affected. The anemometer is best installed on the side of prevailing wind.
If ultrasonic anemometer is installed on the building, theoretically, the installation height of sensor should be 1.5 of the building heights.

Existing reviews of Ultrasonic Anemometer Sensor for Wind Speed & Direction, 60 m/s

Necessary ultrasonic anemometer

This ultrasonic anemometer is cool and easy to use. It is necessary for laboratories. Now, I can know what the real wind speed is, which is convenient for experiments.

From: Impellizzeri | Date: 29/05/2022

Was this review helpful? Yes No (0/0)

Does the ATO ultrasonic anemometer give high wind peaks when they get wet?

Does the ATO ultrasonic anemometer give high wind peaks when they get wet?

From: Montes | Date: 18/11/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, you can use at the wet environment.
