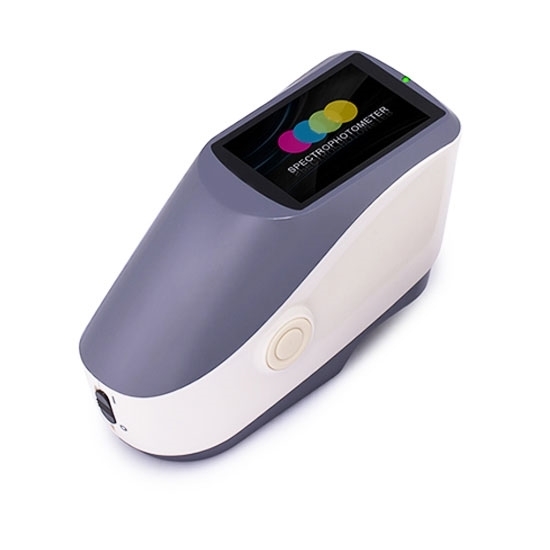

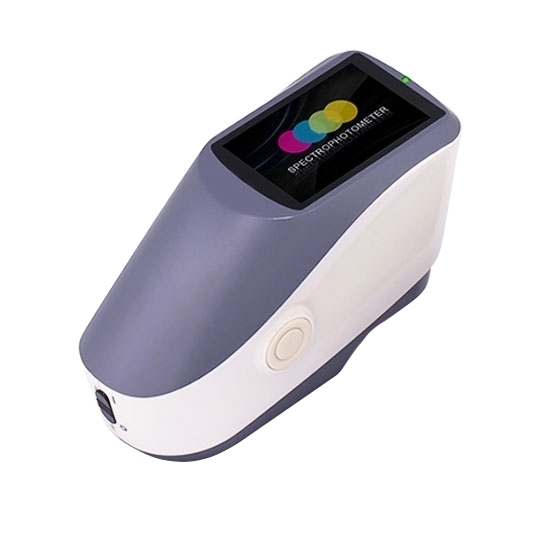

    Portable Spectrophotometer Colorimeter, Caliber 4mm/8mm

    5 out of 5 based on 4 reviews | Write a review
    $4,429.26
    High precision portable spectrophotometer colorimeter can be used for clothing printing and dyeing, 4mm/8mm caliber, ceramic lamp accurate color measurement and quality control, light weight, small size and easy to use.
    *
    SKU: ATO-CM-YS3020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    4mm/8mm compact portable handeld spectrophotometer color meter for paper, printing, ceramics, chemical industry, designed to provide accurate color measurement information.

    Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

    Specification:

    Model ATO-CM-YS3020
    Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
    Integrating Sphere Size 48mm
    Light Source Combined LED Light
    Spectrophotometric Mode Concave Grating
    Sensor 256 Image Element Double Array CMOS Image Sensor
    Wavelength Range 400-700nm
    Wavelength Interval 10nm
    Semiband Width 10nm
    Measured Reflectance Range 0-200%
    Measuring Aperture Customized Aperture: 8mm/4mm/1x3mm
    Specular Component SCI&SCE
    Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
    Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
    Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO),Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
    Observer Angle 2°/10°
    Illuminant D65, A, C, D50, D55, D75, F2, F7, F11
    Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
    Measuring Time 2.6s
    Repeatability MAV/SCI: ΔE*≤0.05
    Inter-instrument Error MAV/SCI: ΔE*≤0.2
    Measurement Mode Single Measurement, Average Measurement
    Locating Method Camera View Finder Locating
    Battery Li-ion battery. 5000 measurements within 8 hours
    Dimension 184*77*105mm
    Weight 600g
    Illuminant Life Span 5 years, more than 3 million times measurements
    Display 3.5-inch TFT color LCD, Capacitive Touch Screen
    Data Port USB/RS232
    Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude<2000m
    Storage Environment -20~50℃, 0~85%RH (no condensing)

    Packing List

    No. Name Quantity
    1 Spectrophotometer 1
    2 Power adapter 1
    3 Manual 1
    4 Data cable 1
    5 Built-in lithium battery 1
    6 CD (including management software) 1
    7 Black and white correction box 1
    8 Protection cap 1
    9 Universal test module (Optional match) 1
    10 Powder test box (Optional match) 1

    Details

    Spectrophotometer Colorimeter Details

    Color Spectrophotometer Accessories

    Accessories



    Note:

    1. Universal Test Components
    Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.
    Dimension: L*W*H=190x190x85 mm

    2. Powder Test Box
    Features: Easy to use; Focus on measuring powder.
    Dimension: ø50X25mm

    Applications
    Colorimeter applications

    Tips: How does the portable spectrophotometer colorimeter improve the color fastness of silk?

    Portable pectrophotometers color meter can help you improve your manufacturing process and test the durability of your textiles under specific environmental conditions to improve the color fastness of silk. When you use mordant and fabric dyes to process raw silk, you can first test the best color of the fabric when exposed to sunlight, rubbing and washing. By testing the dyed silk test sample with a spectrophotometer, you will see how quickly your product will fade under these conditions, and you can optimize your mordant and dye formulations to improve color fastness.

    The portable spectrometer will set the initial color standard of the product (the color when the product is first dyed), and then you can compare future measurements to this standard. For example, if you dye a silk sample and use an aluminum mordant to set up the dye, you may find that your sample begins to fade after five washes. In response, you can use iron mordant and apply your silk to the polymer film to improve the fastness. To test whether these changes do have a positive effect on the color fastness of your silk, you can wash the sample five times to see if it improves color retention. In addition, once you have refined your manufacturing process and dye formulation, you can test future silk products to ensure they are consistent in color between batches.

    Portable spectrophotometers colorimeter require only a small amount of silk sample to test color fastness and color consistency, making it a cost-effective solution for textile manufacturers such as silk. By using the Spectrophotometer to identify the most durable dyes and mordants, you will greatly improve the quality of your silk products and make the most of your limited time and resources.

    Existing reviews of Portable Spectrophotometer Colorimeter, Caliber 4mm/8mm
    Great colorimeter
    I use this colorimeter to match colors in my graphics business. It is fast, small and accurate! It has the ability to provide color comparisons right in the device, which many high-end colorimeters will do only with additional software.
    From: Drew | Date: 12/04/2022
    Was this review helpful? Yes No (0/0)
    4mm/8mm spectrophotometer colorimeter related information
    I was looking at your portable spectrophotometer colorimeter, caliber 4mm/8mm and was wondering if this can be purchased calibrated and how can I recalibrate after purchasing?
    From: Moraine | Date: 18/05/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, the colorimeter will be well calibrated before shipping out.
    2. No need to return back for recalibrate in the future, as you will be able to do calibration yourself in your site, its very simple.
    We shall send you black and white box along with instructions in how to calibrate on your site.
    How can I re-calibrate after purchasing Portable Spectrophotometer Colorimeter?
    I was looking at your Portable Spectrophotometer Colorimeter, Caliber 4mm/8mm and was wondering if this can be purchased calibrated and how can I re-calibrate after purchasing?
    From: Asher | Date: 07/04/2020
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Yes, the Spectrophotometer Colorimeter will be well calibrated before shipping out.
    2. No need to return back for re-calibrate in the future, as you will be able to do calibration yourself in your site, its very simple!
    We shall send you black and white box along with instructions in how to calibrate on your site.
    Perfect portable spectrophotometer
    Before I purchased the portable spectrophotometer colorimeter, I had many questions. The ATO technical team responded to my emails in a timely manner, thank you very much. I was surprised to find that the portable spectrophotometer received was much better than the picture on ATO.com, and the quality was very good. Yes, it is accurate and economical. I can't find any more words to describe, you can try it.
    From: Karl | Date: 18/03/2020
    Was this review helpful? Yes No (0/0)
