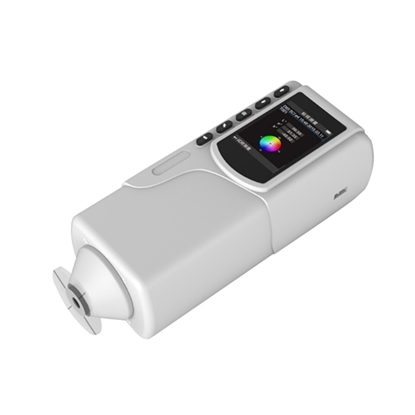

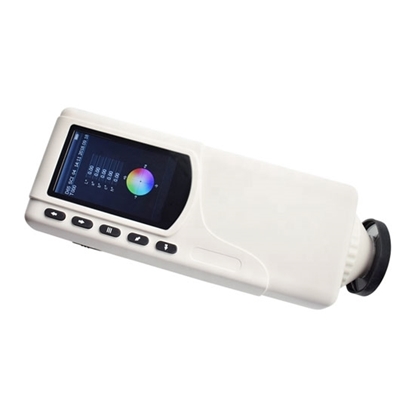

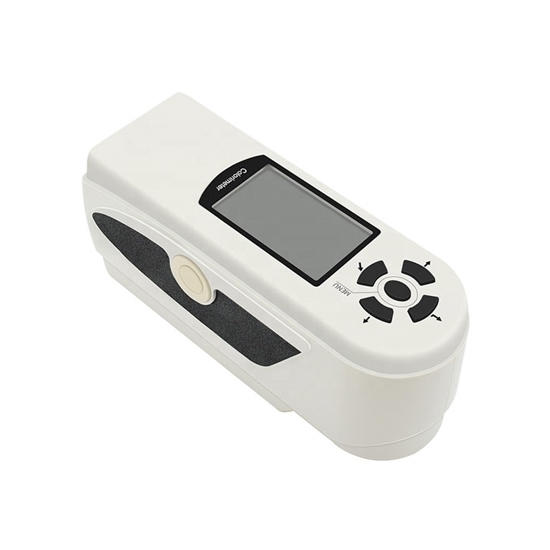

    Pocket Colorimeter for Lab, Medical, Caliber 4mm/8mm

    5 out of 5 based on 3 reviews | Write a review
    $2,584.61
    Low cost pocket colorimeter for lab and medical, 4mm/8mm caliber, USB port, LED screen operation pane with clear data, widely used in papermaking, printing, ceramics and chemical industry.
    SKU: ATO-CM-NH310
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Portable laboratory colorimeter provide users with accurate and fast color management and application, using high capacity lithium ion battery, clear digital dispaly, easy to use.

    Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

    Specification:

    Model ATO-CM-NH310
    Illuminating/Viewing Geometry  8/d
    Measuring Aperture φ8mm/φ4mm
    Errors Between Each Equipment ≤0.40 E*ab
    Repeatability Standard deviation within E *ab 0.06, Average of 30 measurements of, standard white plate
    Detector Silicon photoelectric diode
    Locating Illuminating Locating/Cross Locating
    Measurement End Face Large stable end-face and small concave-convex end-face
    Color Space CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness
    Measuring Times Before Recharging More than 3000 times
    Light Source D65, D50 A
    Light Source Device LED blue light excitation
    Weight 500g
    Power source Rechargeable lithium-ion battery 3.7V@3200mAh
    Lamp Life 5 years, more than 1.6 million measurements
    Charging Time 2 hours (first time 8 hours--100% electricity)
    Connector USB
    Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude<2000m
    Dimension 205×70×100mm

    Packing List

    No. Name Quantity
    1 Colorimeter 1
    2 Power adapter 1
    3 Manual 1
    4 Quality management software 1
    5 Data cable 1
    6 Whiteboard box 1
    7 Φ8 measuring diameter 1
    8 Φ4 measuring diameter 1
    9 Lithium battery 1

    Details

    Pocket Colorimeter Details

    Applications
    Colorimeter applications

    Tips: Working principle of  color spectrophotometer

    Color spectrophotometer through the detection of spectral components of the sample to determine its color parameters, not only can give the absolute value of X, Y, Z and chromatic aberration delta E, can also give the object spectral reflectance value, and draw the object color spectral reflectance curve. Therefore, it is widely used in color matching and color analysis.

    The color difference measurement with high accuracy can be realized by using the spectrometer, and the photoelectric integral color measurement instrument can be calibrated to establish the chromaticity standard. Therefore, the spectrometer is an authoritative instrument in color measurement. It is divided into "0/45 degree" and "d/8 degree integrating ball" two ways of measurement and observation, in which "0/45 degree" refers to the light source shooting in from 45° Angle, 0° Angle for color difference measurement, it can only be used to measure smooth surface, not for computer color matching. The d/8 degree sphere can be used to measure various surfaces and can be used for computer color matching.

    Existing reviews of Pocket Colorimeter for Lab, Medical, Caliber 4mm/8mm
    Easy to take data
    This pocket colorimeter is perfect for portable color analyses by students conducting wear tests. Easy to take data. Very nice product, more than I expected, can quickly measure the color of L A B value of leather.
    From: Cboh | Date: 28/10/2022
    Was this review helpful? Yes No (0/0)
    High quality colorimeter
    High quality colorimeter! This pocket colorimeter is ierfect for portable color analyses conducting wear tests. Easy to take readings. I will order more.
    From: Biaxy | Date: 15/07/2022
    Was this review helpful? Yes No (0/0)
    Great colorimeter, high precision
    I purchased a pocket colorimeter for use in my laboratory. It is small and light. The test results are more accurate than I expected. Very good product and easy to use.
    From: Huin | Date: 29/12/2019
    Was this review helpful? Yes No (0/0)
