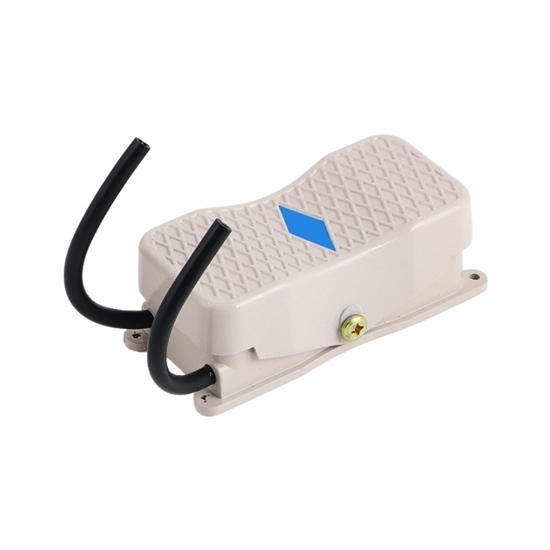

Forward Reverse Foot Switch, Single Phase/ 3 Phase

Single phase/ three phase forward reverse foot switch is used to control the direction of motors in machines or equipment. This foot pedal switch is commonly used in manufacturing, material handling, and automotive workshops, where efficient directional control of equipment is required.

Specification

• Model: ATO-YDT1-20
• Phase (Optional): Single Phase/ Three Phase
• Rated Voltage: 250V
• Operation Frequency: 120 time/h
• Characteristic: Self-Reset
• Mechanical Life: 1 Million Times
• Electrical Life: 300,000 Times

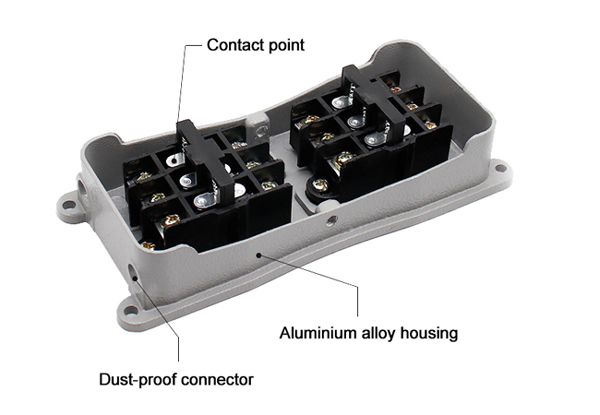

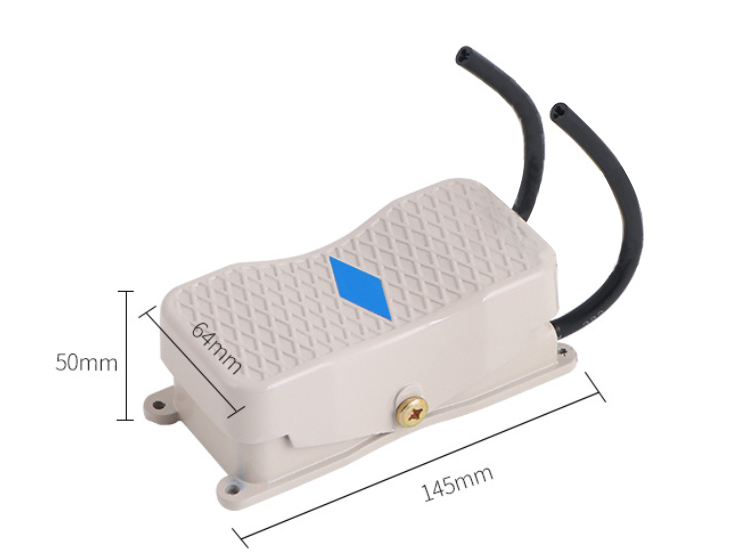

Details

Tips: What is a forward reverse foot switch?

A forward reverse foot switch is a control device used to operate machinery or equipment, allowing users to switch between forward and reverse motion without using their hands. It is commonly found in industrial environments, such as on conveyor belts, motors, and machinery where reversing the direction is necessary.

The foot-operated mechanism frees up the operator’s hands for other tasks, enhancing productivity and safety. These switches are often used in applications like metalworking, woodworking, and textile manufacturing, where the operator frequently needs to change the direction of a motor-driven system.

By using a forward reverse foot switch, operators can make real-time adjustments to machinery motion without having to stop their workflow, improving operational efficiency and control.
