    Foot Pedal Switch, 250V, 15A, 1NO1NC

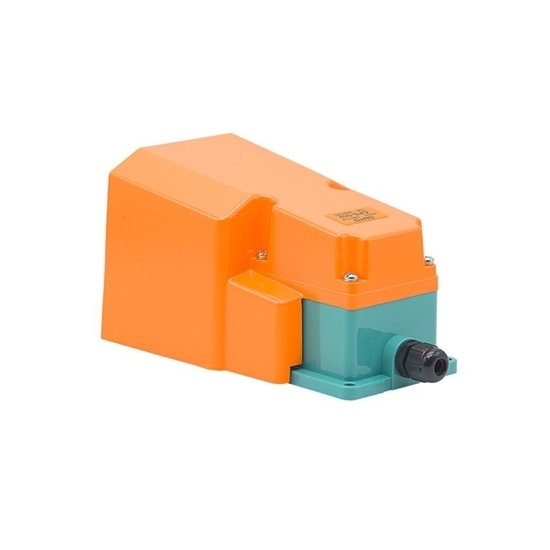

    Picture of Foot Pedal Switch, 250V, 15A, 1NO1NC
    Picture of Foot Pedal Switch, 250V, 15A, 1NO1NC
    Picture of Foot Pedal Switch, 250V, 15A, 1NO1NC

    Foot Pedal Switch, 250V, 15A, 1NO1NC

    5 out of 5 based on 9 reviews | Write a review
    $56.20
    Foot switch at affordable price, with rated voltage 250V, rated current 15 amp, contact 1NO1NC, action force 3.2kg. The foot pedal switch is widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery.
    SKU: ATO-CFS-502
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price pedal switch with 1NO1NC contact, CMV-100D micro switch type. It has advantages of light weight, simple operation and long service life.

    Specification

    Model CFS-502
    Rated voltage 250V AC
    Rated current 15A
    Operation type Momentary
    Micro switch type CM-1704
    Cable type Accessory: Cable gland (No cable)
    Contact 1NO1NC
    Action force 3.2kg
    Shell material Aluminum Cast
    Weight 1.14kg
    Color Orange
    Certificate CE
    Warranty 12 months

    NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

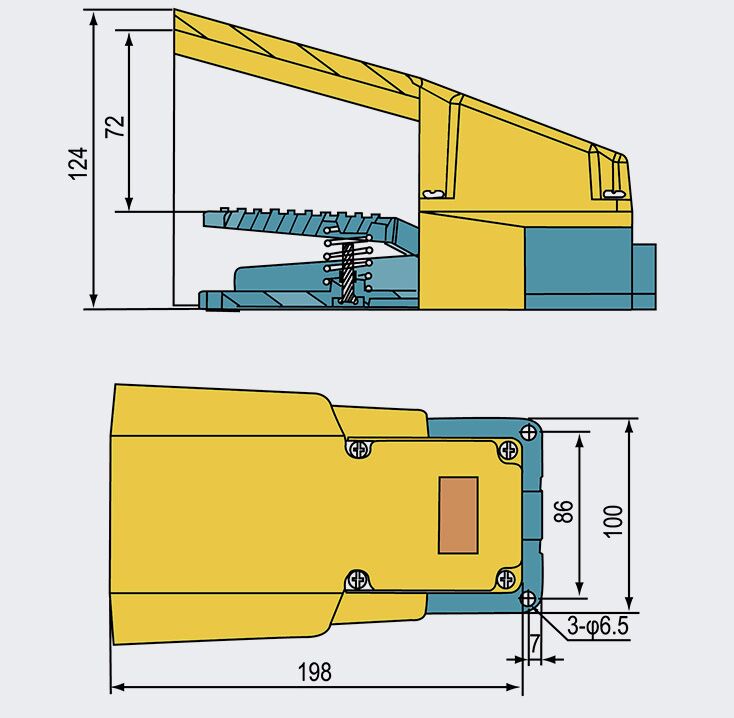

    Dimension (unit=mm)

    Dimension of foot switch of CFS-502

    Tips: How to Install Foot Switch?

    1. The operation circuit is turned on and off by stepping on or stepping on it, and it can also be used to control the switch of the output current. The internal structure of the foot switch is a set of normally open and normally closed. In a 250V circuit, to control a three-phase motor, an AC contactor must be used. The normally open two ends of the foot switch are stringed in the AC contactor coil control loop.

    2. The foot switch has three lines, one control line is normally open, one control line is normally closed, and the other is a common line of normally open and normally closed. We only use one control line which is normally open. One is normally open and the other one is normally closed.

    3. An AC contactor must be used, and the normally open two ends of the foot switch are in series in the AC contactor coil control loop.
