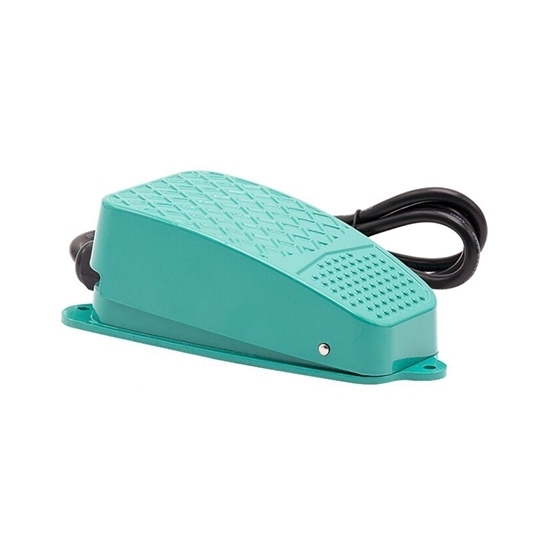

    Foot Switch, 250V, 10A, 1NO1NC
    Picture of Foot Switch, 250V, 10A, 1NO1NC
    Picture of Foot Switch, 250V, 10A, 1NO1NC
    Picture of Foot Switch, 250V, 10A, 1NO1NC

    Foot Switch, 250V, 10A, 1NO1NC

    5 out of 5 based on 10 reviews | Write a review
    $38.10
    Cost-effective foot pedal switch for sales, with rated voltage 250V, rated current 10 amp, contact 1NO1NC, action force 1.2kg. The foot pedal switch has advantages of light weight, simple operation and long service life.
    SKU: ATO-CFS-3
    This product has a minimum quantity of 3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    10A foot pedal switch with 0.75mm², 3C/ 0.5m, 1m-3m cable length, CMV-100D micro switch type, design with aluminum cast material and it has CE certificate.

    Specification

    Model CFS-3
    Rated voltage 250V AC
    Rated current 10A
    Operation type Momentary
    Micro switch type CMV-100D
    Cable length 0.75mm², 3C/ 0.5m, 1m-3m
    Contact 1NO1NC
    Action force 1.2kg
    Shell material Aluminum Cast
    Weight 0.51kg
    Color Green
    Certificate CE
    Warranty 12 months

    NOTE: The default size of conduit connector is M20x1.5, outfiting cable connector. Conduit connector size is PG13.5, with product model number plus (-P), example: CFS-302-P.

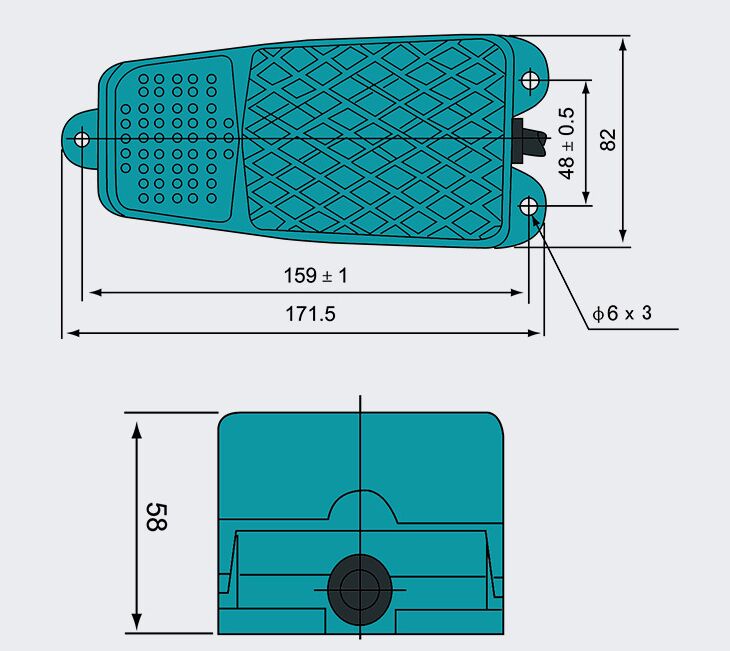

    Dimension (unit=mm)

     Dimension of foot switch of CFS-3

    Tips: Precautions of Foot Switch?

    1. According to the nature of the load and the current value, please pay attention to the rated load of the product.
    2. Please pay attention to short-circuit and open circuit of internal wiring during transportation and movement.
    3. Please pay attention to the protection level of the product when it is used in places with a lot of water, oil, dust, etc.
    4. Heavy pressure and impact are the direct causes of product damage, so please be careful when using it.
