    DC Contactor Price List

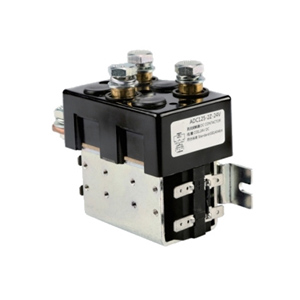

    A contactor is an electric device that using the coil to generate a magnetic field by through the current, and making the contact closed to control the load. The contactor is divided into AC contactor and DC contactor, which is applied to electric power, distribution and electric field. It can quickly cut off the AC and DC main circuit and frequently connected with large current control circuit of the device (up to 800A), so often used in motor as a control object, also can be used as a control equipment, electric heater, and a variety of power unit and power load. The contactor not only can connect and cut off the circuit, but also has the function of low voltage release protection.125a dc reversing contactor 2 pole 12v24v48v
    DC contactor is mainly used to control the DC circuit, it has no impact on the starting current, and will not produce iron core impact. Therefore, the DC contactor is a long service life contactor, and is suitable for frequent start and stop situations. ATO provides a wide range of DC contactors including universal DC contactors, high voltage DC contactors and DC reversing contactors. Rating current of them from 30 amps to 600 amps, available with 12V, 24V, 48V DC coil. Look at the price of ATO DC concactors listed in the table below, it's cheaper for you to get one from us.

    ATO DC contactors price list

    Products Name Model Price Contact Form Coil Rated Voltage
    30A High Voltage DC Contactor ATO-ADH30 $67.23 1 NO 12V/24V DC
    50A High Voltage DC Contactor ATO-ADH50 $91.85 1 NO 12V/24V DC
    100A High Voltage DC Contactor ATO-ADH100 $94.92 1 NO 12V/24V DC
    150A High Voltage DC Contactor ATO-ADH150 $134.92 1 NO 12V/24V DC
    200A High Voltage DC Contactor ATO-ADH200 $141.08 1 NO 12V/24V DC
    250A High Voltage DC Contactor ATO-ADH250 $159.54 1 NO 12V/24V DC
    300A High Voltage DC Contactor ATO-ADH300 $166.15 1 NO 12V/24V DC
    50A DC Reversing Contactor, 2 pole ATO-ADC50 $54.31 2NO and 2NC 12V/24V/48V DC
    100A DC Reversing Contactor, 2 pole ATO-ADC100 $76.46 2NO and 2NC 12V/24V/48V DC
    125A DC Reversing Contactor, 2 pole ATO-ADC125 $88.77 2NO and 2NC 12V/24V/48V DC
    200A DC Reversing Contactor, 2 pole ATO-ADC200 $134.46 2NO and 2NC 12V/24V/48V DC
    400A DC Reversing Contactor, 2 pole ATO-ASW400 $237.08 2NO and 2NC 12V/24V/48V DC
    50A DC Contactor, single pole ATO-AZJ50 $82.61 1 NO 12V/24V/48V DC
    80A DC Contactor, single pole ATO-ANR80 $84.36 1 NO 12V/24V/48V DC
    100A DC Contactor, single pole ATO-AZJ100 $95.63 1 NO 12V/24V/48V DC
    200A DC Contactor, single pole ATO-AZJ200 $101.65 1 NO 12V/24V/48V DC
    500A DC Contactor, single pole ATO-ANR500 $185.63 1 NO 12V/24V/48V DC
    600A DC Contactor, single pole ATO-AZJ600 $165.32 1 NO 12V/24V/48V DC

    Note: This DC contactors price list is for your reference only. It may be different with the selling price, if you need the latest quotation, please click the DC contactors shopping page.
