    Inclinometer Sensor, Output CANopen, ±10°~±90°

    5 out of 5 based on 1 reviews | Write a review
    $253.85

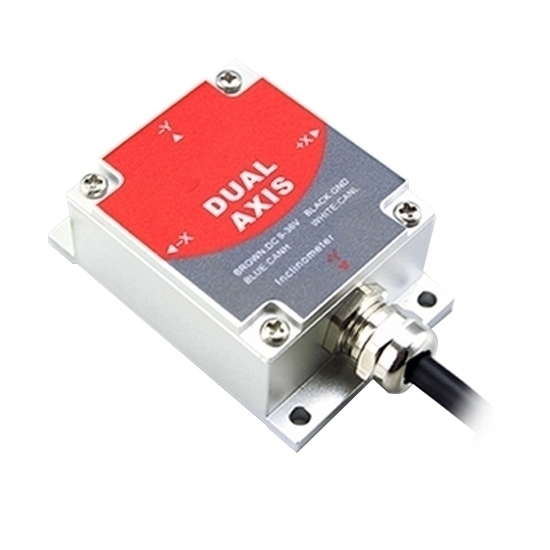

    Affordable price inclinometer sensor for sale. single axis and dual axis, measuring range ±10°/±30°/±60°/±90° for selection, output signal CANopen, absolute accuracy 0.05° and rated voltage DC 9-36V. Buy a high precision industrial tilt sensor for harsh industrial control applications.
    *
    *
    *
    SKU: ATO-IMS-116126
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a single axis or dual axis inclinometer sensor online. It outputs CANopen signal, maximum measuring angle can be selected from ±10°~±90°. The industrial tilt switch sensor has high seismic performance (>2000g) and a direct lead interface.

    Features

    • The single axis/dual axis inclinometer sensor is specially designed for applications of industrial field control. It has reliable and stable performance and good scalability, suitable for various harsh industrial control environments.
    • Inclinometer tilt sensors use industrial standard isolated CAN transceiver, built-in high-precision 16 bit A/D differential converter, which can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through a 5-order filtering algorithm.
    • Due to the built-in high-precision digital temperature sensor, the inclinometer sensor can correct the temperature drift according to the temperature value change, ensuring the high repeatability of the tilt sensor, in low and high temperature environments.
    • The output response frequency standard of the inclinometer sensor can reach 18Hz. If you need a higher response frequency, you can contact us for customization.

    Technical Specification

    Model ATO-SCA116/SCA126-CANopen Condition
    Measuring Axis X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) -
    Measuring Range* ±10° ±30° ±60° ±90° -
    Resolution 0.01° 0.01° 0.02° 0.03° -
    Absolute Accuracy 0.05° 0.05° 0.05° 0.05° @25℃
    Long Term Stability 0.05° 0.05° 0.05° 0.05° -
    Zero Temperature Coefficient ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ -40~85℃
    Sensitivity Temperature Coefficient ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ -40~85℃
    Power On Time 0.5s 0.5s 0.5s 0.5s -
    Response Time 0.02s 0.02s 0.02s 0.02s -
    Response Frequency 5Hz, 15Hz, 35Hz, 50Hz for set
    Output Signal CANopen
    Electromagnetic Compatibility According to EN61000 and GBT17626
    MTBF ≥50000 hours/times
    Insulation Resistance ≥100MΩ
    Shockproof 100g@11ms, 3 Times/Axis (half sinusoid))
    Anti-Vibration 10grms, 10~1000Hz
    Protection Grade IP67
    High Seismic Performance >2000g
    Cables Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm2
    Dimension 46*35.4*13.6mm
    Weight 120g (without cable)

    *Note: This Technical data only list ±10°, ±30°, ±60°, ±90° series for reference, other measuring range please refer to the adjacent specifications.

    Electrical Specification

    Item Min Standard Max Condition
    Power Supply 9V 12V, 24V 36V Standard
    - 5V - Customizable
    Working Current - 40mA - No-load
    Working Temperature -40℃ - +85℃ -
    Store Temperature -55℃ - +125℃ -

    CANopen Inclinometer Sensor Electrical Wiring

    Line Color Function BLACK WHITE GREEN RED
    GND
    Power negative
    CAN_L CAN_H Vcc 9~36V
    Power positive

    CANopen Inclinometer Sensor Dimensions Diagram

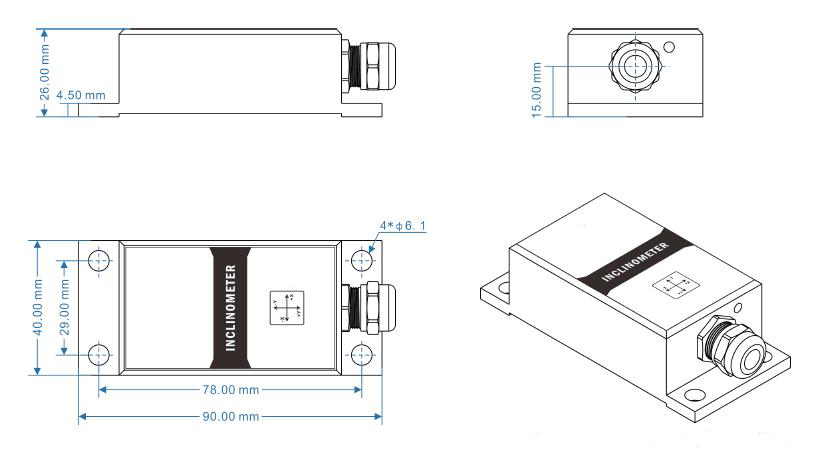

    Dimensions of canopen inclinometer sensor 10°-90°

    Inclinometer Sensor Installation Direction Diagram

    The installation must guarantee the inclinometer sensor bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

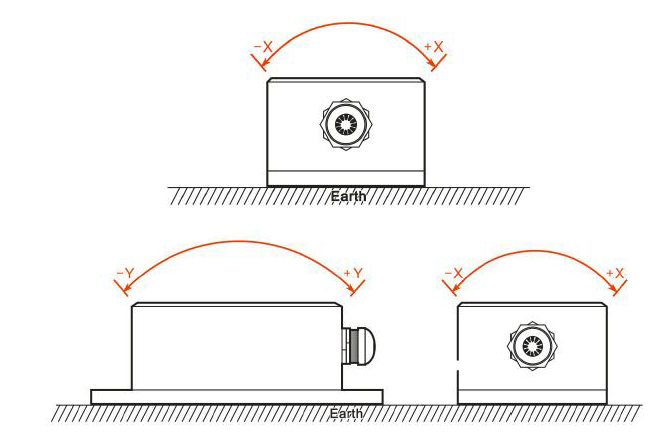

    Installation diagram of canopen inclinometer sensor 10°-90°

    Tips: How to install inclinometer sensor correctly?

    1. The mounting surface of inclinometer sensor and the surface to be measured must be tight, flat and stable. If the installing surface is uneven, it is easy to cause errors in the angle measured by the sensor.
    2. The axis of inclinometer sensor and the axis to be measured must be parallel. Try not to have an angle between the two axes.
