    Inclinometer Sensor, Output 4-20mA, ±10°~±180°

    5 out of 5 based on 3 reviews | Write a review
    $207.69
    Low price inclinometer sensor for sale. Single axis/dual axis incline sensor, standard current 4-20mA output, optional measuring range ±10°/±30°/±60°/±90°/±180°, maximum accuracy 0.01°, wide voltage input 9-36V. Standard industrial tilt sensor, wide applications.
    *
    *
    *
    *
    SKU: ATO-IMS-118128
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High accuracy inclinometer sensor has 4-20mA current output, ±10°~±180° measuring ranges and horizontal or vertical installation for selection. It is a single-axis/2-axis tilt sensor, suitable for bad industrial working conditions.

    Features

    • The inclinometer sensor outputs 4-20mA standard current, transmission distance is up to 2000 meters.
    • Output signal of the single/dual axis inclinometer has strong anti-interference, which is dedicated to engineering machinery and equipment working in harsh environments.
    • The tilt sensor adopts MEMS sensing production process to make precise compensation and correction for temperature error and nonlinear error. Small range accuracy can reach 0.05°, high precision, small size, high packaging technology, strong shock and vibration ability.
    • Inclinometer sensor has built-in anti-radio frequency and adopts anti-electromagnetic interference circuit, which is especially suitable for underground non-excavation machinery and other harsh industrial environments.
    • In terms of reliability and stability of the industrial inclinometer sensor, it uses industrial-grade MCUs, 3-proof PCB boards, cables, wide-temperature shielded metal casings and other measures to improve its industrial grade.

    Technical Specification

    Model ATO-SCA118/SCA128 Condition
    Measuring Axis X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) X/XY (single) -
    Measuring Range* ±10° ±30° ±60° ±90° ±180° -
    Zero Output 12mA 12mA 12mA 12mA 12mA 0° output
    Resolution 0.01° 0.01° 0.02° 0.03° 0.05° -
    Absolute Accuracy 0.05° 0.05° 0.06° 0.08° 0.1° @25℃
    Long Term Stability 0.05° 0.05° 0.05° 0.05° 0.05° -
    Zero Temperature Coefficient ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ -40~85℃
    Sensitivity Temperature Coefficient ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ -40~85℃
    Power On Time 0.5s 0.5s 0.5s 0.5s 0.5s -
    Response Time 0.02s 0.02s 0.02s 0.02s 0.02s -
    Response Frequency 1~20Hz 1~20Hz 1~20Hz 1~20Hz 1~20Hz -
    Output Signal 4-20mA
    Electromagnetic Compatibility According to EN61000 and GBT17626
    MTBF ≥50000 hours/times
    Insulation Resistance ≥100MΩ
    Shockproof 100g@11ms, 3 Times/Axis (half sinusoid))
    Anti-Vibration 10grms, 10~1000Hz
    Protection Grade IP67
    High Seismic Performance >2000g
    Cables Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm2
    Dimension 90*40*26mm
    Weight 165g (without cable)

    *Note: This Technical data only list ±10°, ±30°, ±60°, ±90°, ±180° series for reference, other measuring range please refer to the adjacent specifications.

    Electrical Specification

    Item Min Standard Max Condition
    Power Supply 9V 12V, 24V 36V Standard
    Working Current - 50mA - -
    Output Load - 400Ω 1000Ω Resistive
    Working Temperature -40℃ - +85℃ -
    Store Temperature -55℃ - +125℃ -

    4-20mA Inclinometer Sensor Electrical Wiring

    • Single Axis Wiring Definition
    Line Color Function BLACK WHITE GREEN RED
    GND
    Power negative
    Out X
    X Axis output current
    NC
    Spare line
    Vcc Power supply
    Power positive
    • Dual Axis Wiring Definition
    Line Color Function BLACK WHITE GREEN RED
    GND
    Power negative
    Out X
    X Axis output current
    Out Y
    Y Axis output current
    Vcc Power supply
    Power positive

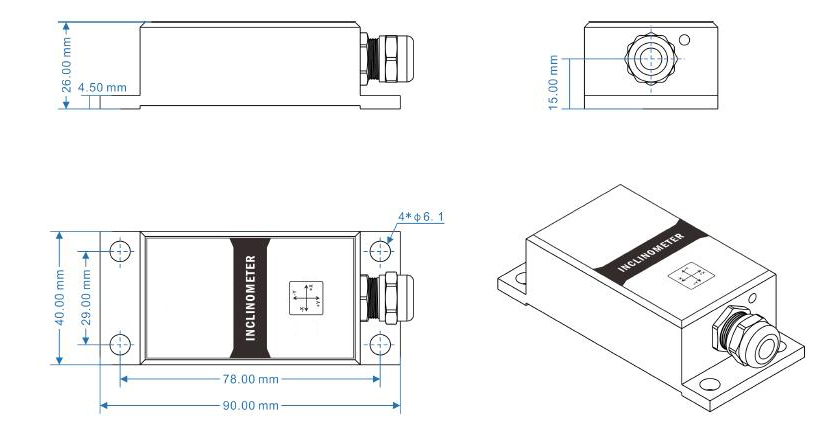

    4-20mA Inclinometer Sensor Dimensions Diagram

    Dimensions of SCA inclinometer sensor 4-20ma 10°-180°

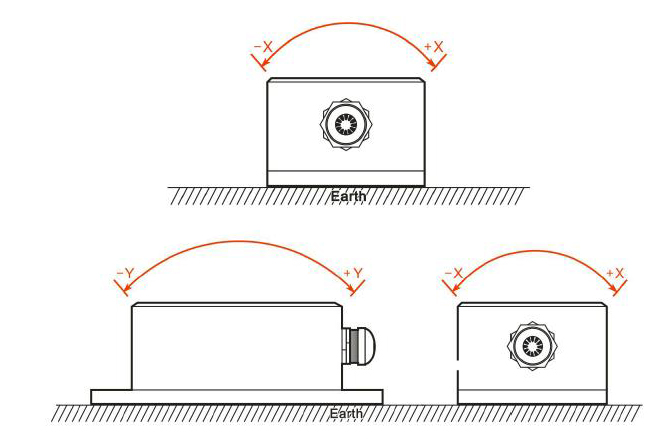

    Inclinometer Sensor Installation Direction Diagram

    The installation must guarantee the inclinometer sensor bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

    Installation of SCA inclinometer sensor 4-20ma 10°-180°

    Tips: Definitions of inclinometer sensor key specifications.

    • Resolution: It refers to the smallest change value of the measured value that can be detected and distinguished by the inclinometer sensor within the measurement range.
    • Absolute accuracy: refers to the combined error of absolute linearity, repeatability, hysteresis, zero point deviation, and horizontal axis error of the inclinometer sensor, under normal temperature conditions.
    • Long-term stability: It refers to the deviation between the maximum value and the minimum value of the inclinometer sensor after one year of long-term work, under normal temperature conditions.
    • Response time: It refers to the time required for the sensor to output and reach the standard value when the angle of the inclinometer sensor changes once.
    Existing reviews of Inclinometer Sensor, Output 4-20mA, ±10°~±180°
    Will inclinometer sensor regain its position?
    OK. But will it regain its position once power is restored without need to be zeroed or calibrated?
    From: kerri | Date: 10/05/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Once power is restored, the sensor does not need to be calibrated and adjusted, and can directly output the absolute angle value.
    Is this dual-axis inclinometer suitable for machines?
    Is this dual-axis inclinometer suitable for machines? I need one axis 360 degrees and the second axis can be smaller such as 15 degrees.
    From: DeLisle | Date: 12/12/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    For an axis of 360 degrees (±180 degrees), it is a single axis, not a double axis. We recommend using our single-axis X-axis to measure the inclination angle of plus or minus 180 degrees. And another our single-axis Y-axis to measure the inclination angle of ±15 degrees or 30 degrees.
