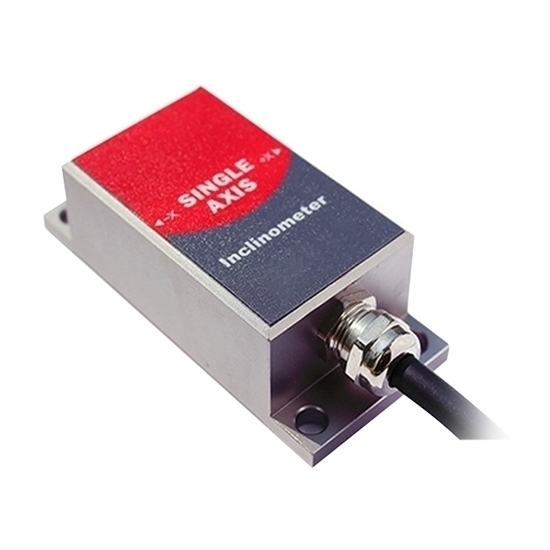

    Inclinometer Sensor, Output Modbus, ±10°~±90°

    5 out of 5 based on 2 reviews | Write a review
    $192.31
    Single axis or dual axis inclinometer sensor for sale. High precision tilt switch comes with output signal Modbus, optional measuring range ±10°/±30°/±60°/±90°, output interface RS232, RS485, RS232, UART TTL, absolute accuracy 0.05°, power supply input 9-36V.
    *
    *
    *
    *
    *
    SKU: ATO-IMS-116126MB
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap industrial inclinometer sensor features 1-axis/2-axis, Modbus output, output interface RS232, RS485, RS232, UART TTL, and optional measuring range±10°~±90°. It is an industrial tilt switch sensor with reliable, stable performance and good scalability, suitable for various harsh control environments.

    Features

    • The Modbus inclinometer sensor uses RS485 hardware differential bus to transmit data, single axis or dual axis is available.
    • The tilt sensor has a built-in high-precision 16 bit A/D differential converter, which can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through a 5-order filtering algorithm.
    • Due to the built-in high-precision digital temperature sensor, the inclinometer sensor can correct the temperature drift according to the temperature value change, ensuring the high repeatability of the tilt sensor, in low and high temperature environments.
    • The output response frequency standard of the inclinometer sensor can reach 18Hz. If you need a higher response frequency, you can contact us for customization.

    Technical Specification

    Model ATO-SCA116M-MB/SCA126M-MB Condition
    Measuring Axis X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) -
    Measuring Range* ±10° ±30° ±60° ±90° -
    Resolution 0.01° 0.01° 0.02° 0.03° -
    Absolute Accuracy 0.05° 0.05° 0.05° 0.05° @25℃
    Long Term Stability 0.05° 0.05° 0.05° 0.05° -
    Zero Temperature Coefficient ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ ±0.006°/℃ -40~85℃
    Sensitivity Temperature Coefficient ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ ≤100 ppm/℃ -40~85℃
    Power On Time 0.5s 0.5s 0.5s 0.5s -
    Response Time 0.02s 0.02s 0.02s 0.02s -
    Response Frequency 5Hz, 15Hz, 35Hz, 50Hz for set
    Output Signal Modbus
    Electromagnetic Compatibility According to EN61000 and GBT17626
    MTBF ≥50000 hours/times
    Insulation Resistance ≥100MΩ
    Shockproof 100g@11ms, 3 Times/Axis (half sinusoid))
    Anti-Vibration 10grms, 10~1000Hz
    Protection Grade IP67
    High Seismic Performance >2000g
    Cables Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm2
    Dimension 46*35.4*13.6mm
    Weight 165g (without cable)

    *Note: This Technical data only list ±10°, ±30°, ±60°, ±90° series for reference, other measuring range please refer to the adjacent specifications.

    Electrical Specification

    Item Min Standard Max Condition
    Power Supply 9V 12V, 24V 36V Standard
    - 5V - Customizable
    Working Current - 42mA - 5V
    - 26mA - 12V
    - 17mA - 24V
    Working Temperature -40℃ - +85℃ -
    Store Temperature -55℃ - +125℃ -

    Modbus Inclinometer Sensor Electrical Wiring

    • RS485 Wiring Definition
    Line Color Function BLACK WHITE GREEN RED
    GND
    Power negative
    RS485 (D+) RS485 (D-) Vcc 9~36V
    Power positive
    • RS232/TTL Wiring Definition
    Line Color Function BLACK WHITE GREEN RED
    GND
    Power negative
    RS232 (RXD)
    /TTL (RXD)
    RS232 (RXD)
    /TTL (RXD)
    Vcc 9~36V
    Power positive
    • RS422 Wiring Definition
    Line Color Function RED ORANGE YELLOW BLUE PURPLE BLACK
    GND
    Power positive
    TXD+ RXD- RXD+ TXD- GND
    Power negative

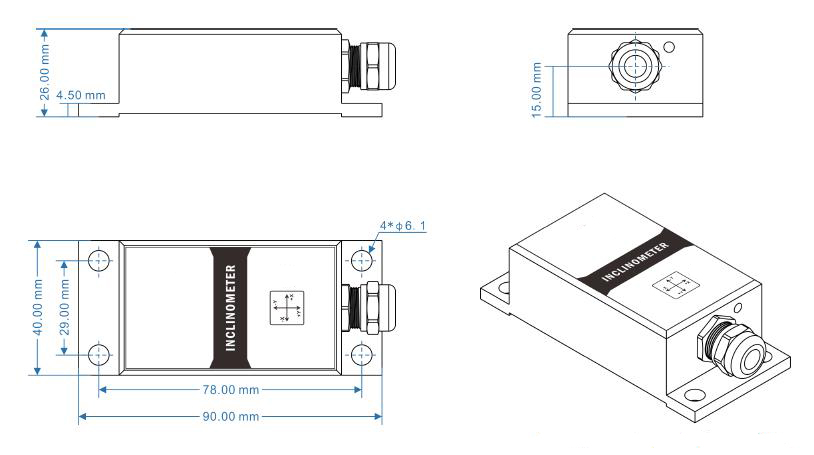

    Modbus Inclinometer Sensor Dimensions Diagram

    Dimensions of modbus inclinometer sensor 10°-90°

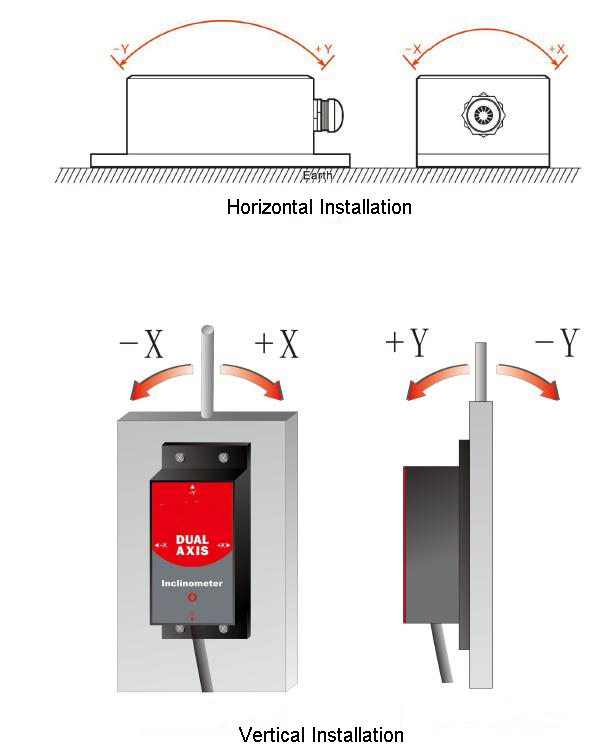

    Inclinometer Sensor Installation Direction Diagram

    The installation must guarantee the inclinometer sensor bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

    Installation Diagram of modbus inclinometer sensor 10°-90°

    Tips: Inclinometer sensor working principle.

    Inclinometer sensor uses high-performance core control unit, using the principle of capacitive miniature pendulum. Inclinometer sensor uses the principle of earth's gravity. When the inclination unit is tilted, the earth's gravity will produce a component of gravity on the corresponding pendulum, and the corresponding capacitance will change. The inclination angle is obtained by amplifying, filtering, and converting the capacitance.

    Inclinometer Sensor Working Principle

    As shown in the figure, UL is the voltage between the left plate of the pendulum and its corresponding electrode, and UR is the voltage between the right plate and its corresponding electrode. When the inclinometer sensor is tilted, UL and UR will change according to a certain rule. Therefore, ξ (UL, UR) is a function of the inclination angle α: α = ξ (UL, UR)

    Existing reviews of Inclinometer Sensor, Output Modbus, ±10°~±90°
    About power supply
    The distance from the display panel to a 120 VAC connection is 2 meters, so the default 1 meter power cable for the display panel should work. Can you supply the DC9-36V power supply for the panel display? The distance from the display panel to the sensor is 25 meters, so 2 additional cable extensions will be required. Would you suggest extension cables to do this or can you provide longer cables from the sensors?
    From: Reedy | Date: 05/07/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. If your power supply is only 120VAC, then you need to configure a switching power supply to convert 120VAC to 24VDC, and then supply power to the display panel through the 24V switching power supply. We recommend this switching power supply 24V/50W switching power supply, SKU: ATO-SMPS-50-24, input voltage 85~132VAC, output voltage 24VDC, see spec on: https://www.ato.com/24v-dc-2-1a-50w-switching-power-supply
    2. Yes, we can provide longer sensor cables, 25 meters long sensor cables, including 2 meters long display panel power cables. However, you will need to configure the cable for the switching power supply yourself. Specifically, you need to provide the 120VAC power cable and connect it to the 24V switching power cable.
    Convenient, works well
    Recently, our company is conducting on-site survey of the computer room construction. We have high requirements for accuracy and we have bought several other brands before, but the accuracy is not enough. This one has high accuracy, good quality and low price. It works well and is convenient. We will definitely buy these again.
    From: Edwin | Date: 06/05/2022
    Was this review helpful? Yes No (0/0)
