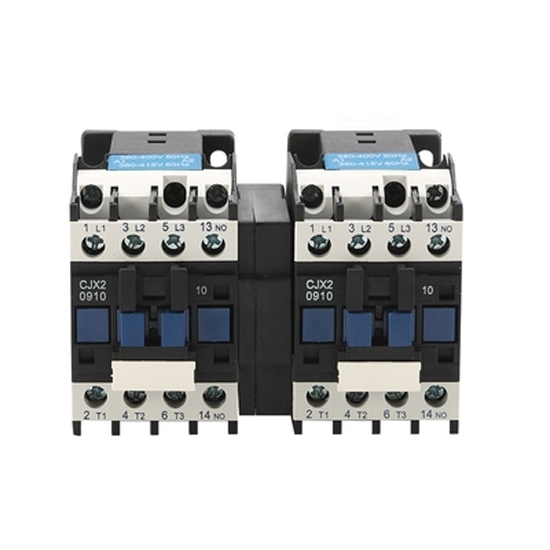

    9 amp Mechanical Interlock AC Contactor
    Picture of 9 amp Mechanical Interlock AC Contactor
    Picture of 9 amp Mechanical Interlock AC Contactor
    Picture of 9 amp Mechanical Interlock AC Contactor
    Picture of 9 amp Mechanical Interlock AC Contactor

    9 amp Mechanical Interlock AC Contactor

    Write a review
    $68.29
    9 amp 3 pole or 4 pole mechanical interlocking AC contactor for sale at factory price, with coil rated voltage from 24V AC to 380V AC 50Hz or 60Hz, 3NO/4NO + auxiliary contact 2NC, has simple structure and easy mounting to control an electrical power circuit.
    *
    *
    SKU: ATO-ACCON-09N
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetic AC reversing contactor with a mechanical interlock can save electric energy and eliminate power frequency noise. This magnetic contactor drives the moving contact and the static contact to realize the purpose of connecting or breaking the circuit.

    Specification

    Model ATO-CJX2-09N
    Rated Operational Current 380V AC-3 9A
    AC-4 3.5A
    660V AC-3 7A
    AC-4 1.5A
    Conventional Heating Current 20A
    Rated Insulation Voltage 690V
    Power of Controllable 3-phase Squirrel-cage Motor (AC-3) 220V 2.2kW
    380V 4kW
    660V 5.5kW
    Operational Frequency Electric Life AC-3 1200 times/h
    AC-4 300 times/h
    Mechanical Life 3600 times/h
    Service Life Electric Life (104 Operations) AC-3 100
    AC-4 20
    Mechanical Life (104 Operations) 1000
    Matching Fusing Model RT16-16
    Average Power Consumption (20℃) @ 50Hz Pick-up 76VA
    Holding 9.4VA
    Contact Form (Optional) 3P (Additional 1NO Auxiliary Contact) or 4P
    Rail Size 35mm
    Ambient Temperature -5℃~+40℃
    Altittude ≤2000m
    Class of Pollution Class 3
    Installation Category Ⅲ
    Dimensions 138 x 76 x 82mm
    Weight 1kg

    Tips: Installation conditions of mechanical interlock AC contactors

    • The altitude of the installation site does not exceed 2000m.
    • The upper limit of ambient air temperature should not exceed +40℃, and the lower limit should not be lower than -5℃.
    • The relative humidity of the air at the installation site does not exceed 50% when the maximum temperature is +40°C.
    • The installation incline to the vertical surface does not exceed ±5°.
    • The mechanical interlock AC contactor should be installed in a place where there is no significant shaking, impact and vibration.
