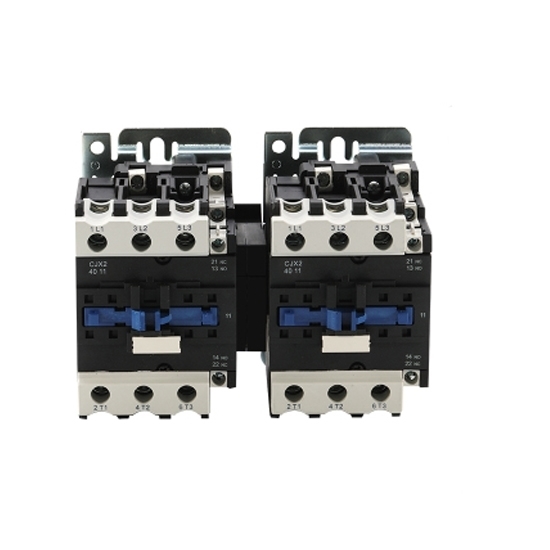

    65 amp Mechanical Interlock AC Contactor

    5 out of 5 based on 1 reviews | Write a review
    $125.89
    AC reversing contactor with mechanical interlock for sale, coil rated voltage 24V, 36V AC to 380V AC, 65 amp 3 pole or 4 pole, auxiliary contact 2NC. This magnetic contactor drives the moving contact and the static contact to realize the purpose of connecting or breaking the circuit.
    *
    *
    SKU: ATO-ACCON-65N
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Magnetic AC reversing contactor with a mechanical interlock can save electric energy and eliminate power frequency noise. It is a mechanical system that has simple structure and easy mounting to control circuit.

    Specification

    Model ATO-CJX2-65N
    Rated Operational Current 380V AC-3 65A
    AC-4 28A
    660V AC-3 42A
    AC-4 14A
    Conventional Heating Current 80A
    Rated Insulation Voltage 690V
    Power of Controllable 3-phase Squirrel-cage Motor (AC-3) 220V 18.5kW
    380V 30kW
    660V 37kW
    Operational Frequency Electric Life AC-3 600 times/h
    AC-4 150 times/h
    Mechanical Life 3600 times/h
    Service Life Electric Life (104 Operations) AC-3 60
    AC-4 15
    Mechanical Life (104 Operations) 800
    Matching Fusing Model RT16-80
    Average Power Consumption (20℃) @ 50Hz Pick-up 230VA
    Holding 32VA
    Contact Form (Optional) 3P (Additional 1NO Auxiliary Contact) or 4P
    Rail Size 35mm
    Ambient Temperature -5℃~+40℃
    Altittude ≤2000m
    Class of Pollution Class 3
    Installation Category
    Dimensions 200 x 128 x 116mm
    Weight 3kg

    Tips: Auxiliary contact of AC contactor

    Auxiliary contacts can be divided into normally open point NO and normally closed point NC. Normally open point NO is mainly used for contactor self-locking control and transmission of operating signals, for example: AC contactor normally open point NO connected to a red indicator light can be used as the running indicator light of the motor, when the AC contactor is energized, The normally open point NO is closed, and the indicator light is turned on to transmit the operating signal of the motor or circuit. The normally closed point NC of the AC contactor. The normally closed point NC of the AC contactor is mainly used for circuit interlocking and signal transmission. For example: The interlock function of the NC of the contactor's normally closed point is used in the motor forward and reverse control circuit. The normally closed point NC of the AC contactor is connected to a green indicator light, which can be used as a stop indicator for the circuit or motor. When the AC contactor is energized, the normally closed point NC is disconnected, the stop indicator light is off, and the corresponding running indicator light is on, and the circuit run.
