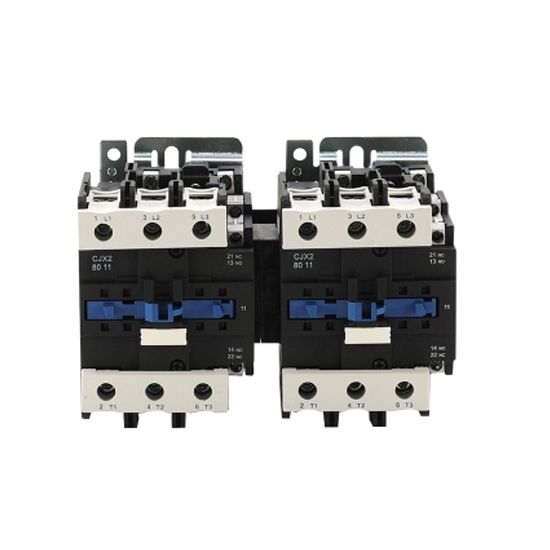

    80 amp Mechanical Interlock AC Contactor

    5 out of 5 based on 1 reviews | Write a review
    $142.59
    Favorable price 80 amp 3 pole/ 4 pole mechanical interlocking AC contactor with coil rated voltage from 24V AC to 380V AC 50Hz or 60Hz, 3NO or 4NO + auxiliary contact 2NC, has simple structure and easy mounting to control an electrical power circuit.
    *
    *
    SKU: ATO-ACCON-80N
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Best price mechanical interlocking contactor is an electrically controlled switch constructed with a mechanical interlock and two revering contactor, which is used for switching an electrical power circuit.

    Specification

    Model ATO-CJX2-80N
    Rated Operational Current 380V AC-3 80A
    AC-4 37A
    660V AC-3 49A
    AC-4 17.3A
    Conventional Heating Current 110A
    Rated Insulation Voltage 690V
    Power of Controllable 3-phase Squirrel-cage Motor (AC-3) 220V 22kW
    380V 37kW
    660V 45kW
    Operational Frequency Electric Life AC-3 600 times/h
    AC-4 150 times/h
    Mechanical Life 2400 times/h
    Service Life Electric Life (104 Operations) AC-3 60
    AC-4 10
    Mechanical Life (104 Operations) 600
    Matching Fusing Model RT16-100
    Average Power Consumption (20℃) @ 50Hz Pick-up 230VA
    Holding 32VA
    Contact Form (Optional) 3P (Additional 1NO Auxiliary Contact) or 4P
    Rail Size 35mm
    Ambient Temperature -5℃~+40℃
    Altittude ≤2000m
    Class of Pollution Class 3
    Installation Category
    Dimensions 205 x 128 x 127mm
    Weight 3.5kg

    Tips: Classification of AC contactors

    AC contactors are generally divided into one, two, three, and four types according to the type of load, which are denoted as AC-1, AC-2, AC-3, and AC-4. The corresponding control object of the first type of AC contactor is non-inductive or micro-inductive load, such as incandescent lamps, resistance furnaces, etc.; the second type of AC contactor is used to start and stop the wound asynchronous motor; the typical use of the third type of AC contactor is The squirrel cage asynchronous motor is running and disconnected during operation; the four types of AC contactors are used for the starting, reverse braking, reverse rotation and inching of the cage asynchronous motor.
