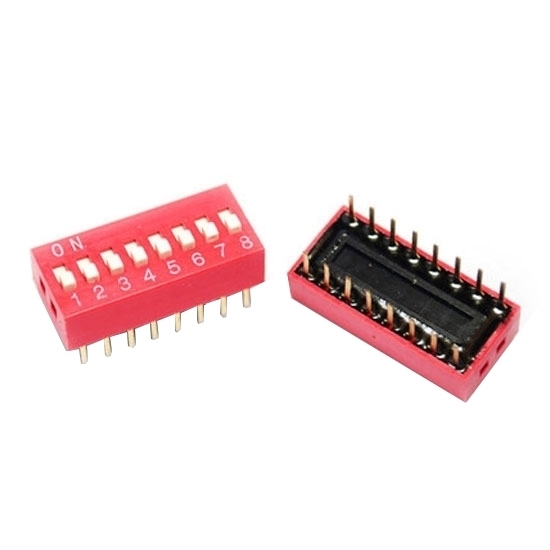

    8 Position DIP Switch, 16 Pin, SPST

    5 out of 5 based on 2 reviews | Write a review
    $9.89
    Miniature surface mount 8 position DIP switch at wholesale price, SPST loop, pin spacing 2.54mm. It is a dual in-line package switch miniature which can be mounted on a PCB, breadboard or motherboard to switch on or off circuits.
    *
    SKU: ATO-DIP-8P
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 8 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

    Specification

    Model ATO-DIP-8P
    Spacing 2.54mm
    Number of Switch 8
    Number of Pin 16
    Maximum Operating Force 8N
    Push Button Stroke 2mm
    Operating Temperature -20℃~+70℃
    Storage Temperature -40℃~+85℃
    Contact Resistance Initial Value: 50MΩ, After Test: 100MΩ
    Insulation Resistance 100MΩ, 500VDC
    Compressive Strength 500VAC/1min
    Interpolar Capacitance 5pF
    Loop SPST (Single Pole Single Throw)
    Electrical Life Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
    Rated Current Does not Switch Frequently 10mA, Withstand Voltage 50V DC
    Switch Frequently 25mA, Withstand Voltage 24V DC
    Weight 0.1kg

    Dimensions (Unit: mm)

    Dimensions of 8 Position 16 Pin SPST DIP Switch

    Tips: How to use 8 position DIP switch?

    1 to 8 each position represents a number. Push to the ON position to be 0, and dial to the corresponding position to represent the numbers 1, 2, 4, 8, 16, 32, 64, 128, and the numbers represented by the following digits are added together, which is the address code of the machine. For example, No. 11 is 1+2+2+8= 13, and No. 30 is 2+4+8+16= 30, and the maximum dialing range is 128.

    Miniature DIP switches are available with 1 to 12 positions plus corresponding numbers of pins for selection. They are equipped with SPST loop and allow users to control the flow of electricity around a PCB. Red and blue types are available.
