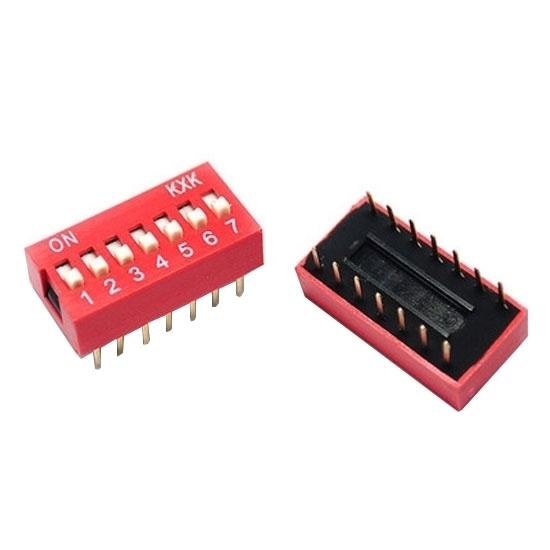

    7 Position DIP Switch, 14 Pin, SPST

    5 out of 5 based on 3 reviews | Write a review
    $9.79
    7 position 14 pin Dual inline package switch (DIP switch) for sale. It can be used to activate or deactivate different electronic circuits of PCB, breadboard or motherboard, surface mount, SPST loop, pin space 2.45mm, small size with wholesale price.
    *
    SKU: ATO-DIP-7P
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    DIP switch is a dual inline package switch that is used for holding configurations and selecting the interrupt request for motherboards or breadboard. This small DIP switch with 7 push buttons also can be used to activate or deactivate different electronic circuits.

    Specification

    Model ATO-DIP-7P
    Spacing 2.54mm
    Number of Switch 7
    Number of Pin 14
    Maximum Operating Force 8N
    Push Button Stroke 2mm
    Operating Temperature -20℃~+70℃
    Storage Temperature -40℃~+85℃
    Contact Resistance Initial Value: 50MΩ, After Test: 100MΩ
    Insulation Resistance 100MΩ, 500VDC
    Compressive Strength 500VAC/1min
    Interpolar Capacitance 5pF
    Loop SPST (Single Pole Single Throw)
    Electrical Life Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
    Rated Current Does not Switch Frequently 10mA, Withstand Voltage 50V DC
    Switch Frequently 25mA, Withstand Voltage 24V DC
    Weight 0.1kg

    Dimensions (Unit: mm)

    Dimensions of 7 Position 14 Pin SPST DIP Switch

    Tips: Why is the stability of the DIP switch important?

    The main function of the DIP switch is to realize the selection, option and location of the coding function through the on-off of the control circuit. The stability of the DIP switch is directly related to the stable operation of the system, so it is necessary to use a high-quality DIP switch.

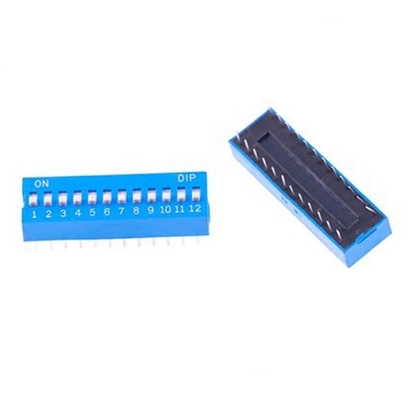

    Miniature DIP switches are available with 1 to 12 positions plus corresponding numbers of pins for selection. They are equipped with SPST loop and allow users to control the flow of electricity around a PCB. Red and blue types are available.
