    4 Position DIP Switch, 8 Pin, SPST

    5 out of 5 based on 4 reviews | Write a review
    $9.19
    4 position 4 way DIP switch with 8 pins for sale, 2.54mm pin spacing, it is an electromechanical device to make manual changes to an electronic circuit. This micro SPST DIP switch is commonly mounted on a PCB, breadboard or motherboard.
    *
    SKU: ATO-DIP-4P
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    4 position 4 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

    Specification

    Model ATO-DIP-4P
    Spacing 2.54mm
    Number of Switch 4
    Number of Pin 8
    Maximum Operating Force 8N
    Push Button Stroke 2mm
    Operating Temperature -20℃~+70℃
    Storage Temperature -40℃~+85℃
    Contact Resistance Initial Value: 50MΩ, After Test: 100MΩ
    Insulation Resistance 100MΩ, 500VDC
    Compressive Strength 500VAC/1min
    Interpolar Capacitance 5pF
    Loop SPST (Single Pole Single Throw)
    Electrical Life Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
    Rated Current Does not Switch Frequently 10mA, Withstand Voltage 50V DC
    Switch Frequently 25mA, Withstand Voltage 24V DC
    Weight 0.1kg

    Dimensions (Unit: mm)

    Dimensions of 4 Position 8 Pin SPST DIP Switch

    Tips: DIP switch for PLC control system

    DIP switches are widely used in data processing, communication, remote control and anti-theft automatic alarm systems, air showers and other products that require manual programming. If some data in the PLC control system needs to be modified frequently, you can use a multi-position DIP switch to connect to the PLC and set the data outside the PLC. In the figure, the COM terminal of the 4 position DIP switch is connected together with the COM terminal of the PLC. The 4 data lines of each DIP switch are connected to the 4 input points of the PLC in a certain order.

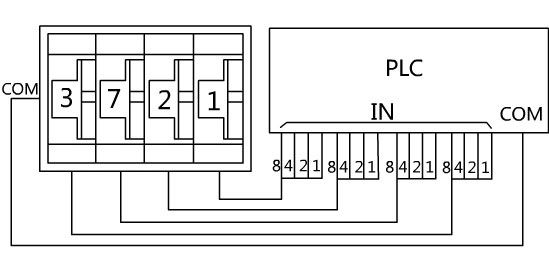

    4 Position 8 Pin Dip Switch for PLC Control System

    Miniature DIP switches are available with 1 to 12 positions plus corresponding numbers of pins for selection. They are equipped with SPST loop and allow users to control the flow of electricity around a PCB. Red and blue types are available.
