    3 Position DIP Switch, 6 Pin, SPST

    5 out of 5 based on 2 reviews | Write a review
    $9.09

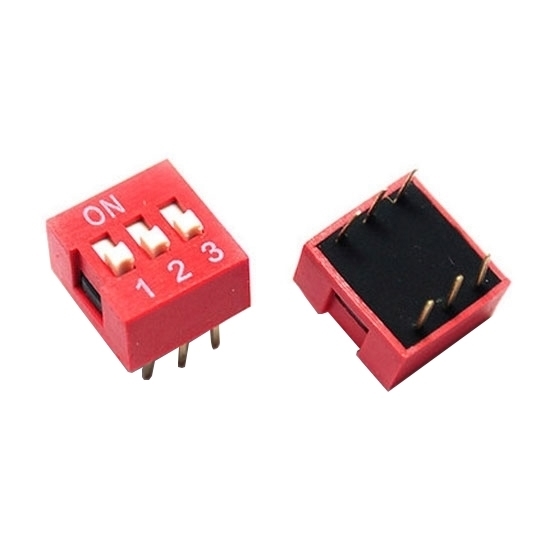

    Factory price 3 position 6 pin DIP switch oneline sale, SPST loop, mini and simple. This electronic DIP switch consists of 3 switches in a single unit which can be mounted on a PCB, breadboard or motherboard to control circuits.
    *
    SKU: ATO-DIP-3P
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Wholesale price 3 position 3 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

    Specification

    Model ATO-DIP-3P
    Spacing 2.54mm
    Number of Switch 3
    Number of Pin 6
    Maximum Operating Force 8N
    Push Button Stroke 2mm
    Operating Temperature -20℃~+70℃
    Storage Temperature -40℃~+85℃
    Contact Resistance Initial Value: 50MΩ, After Test: 100MΩ
    Insulation Resistance 100MΩ, 500VDC
    Compressive Strength 500VAC/1min
    Interpolar Capacitance 5pF
    Loop SPST (Single Pole Single Throw)
    Electrical Life Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
    Rated Current Does not Switch Frequently 10mA, Withstand Voltage 50V DC
    Switch Frequently 25mA, Withstand Voltage 24V DC
    Weight 0.1kg

     Dimensions (Unit: mm)

    Dimensions of 3 Position 6 Pin SPST DIP Switch

    Tips: How to use the DIP switch?

    The DIP switch cannot directly control the stepper motor, it needs a stepper driver. The principle of the DIP switch is like the parallel connection of resistors. The number 8421 corresponds to the resistance value of 1/8, 1/4, 1/2, 1 in turn, which can also be measured with a multimeter. The DIP switch is equivalent to a switch value. When it is turned ON, it means it is connected, and when it is OFF it means it is disconnected. In digital circuits, 0 and 1 are usually used for binary output.

    Miniature DIP switches are available with 1 to 12 positions plus corresponding numbers of pins for selection. They are equipped with SPST loop and allow users to control the flow of electricity around a PCB. Red and blue types are available.
