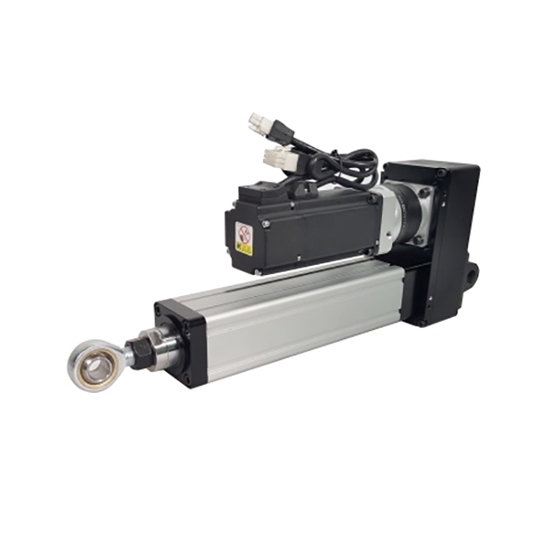

6hp (4.5kW) Linear Servo Motor, 29Nm, 34kN, 1800mm

5 out of 5 based on 1 reviews | Write a review

$9,483.08

Lower cost linear servo actuator with rated power 4500 watt, 220 volt rated voltage, max. stroke 1800mm, rated torque 29 Nm, rated thrust 22.96 kN, max. thrust can up to 34 kN, in-line/ reentrant two connection for needs. The linear sevo motor offers advantages of stable performance, low failure rate, and high reliability.

Structure Type *
Installation Method *
Rod End Connection *

SKU: ATO-SERVO-L4500

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

6hp linear cylinder with reduction ratio 2:1, lead 10mm, rated linear speed 177.67mm/ s, maximum linear speed up to 288.78mm/ s. It is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

Specification

Model	ATO-EDA110-4500W
Rated power	6hp (4.5KW)
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	2:1
Rated speed	1500 rpm
Max. speed	3000 rpm
Rated torque	29 Nm
Rated thrust	22.96 kN
Rated linear speed	166.67mm/s
Max. thrust	34 kN
Max. linear speed	333.33mm/s
Max. stroke	1800mm
Diameter	40mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	316kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

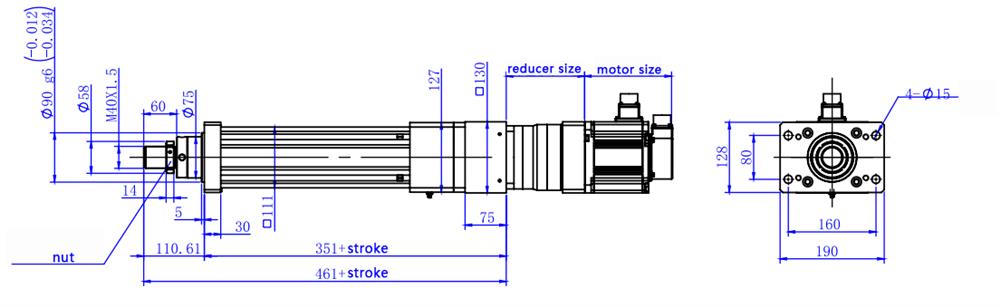

In-line

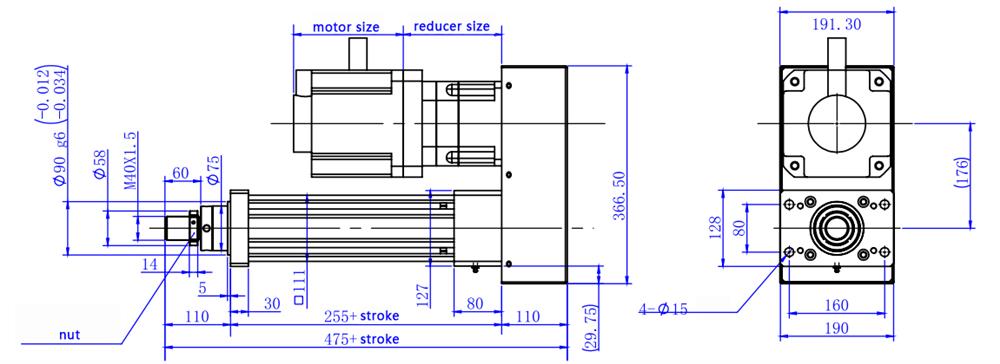

Reentrant

Details

Tips: Motion Conversion Structure of Linear Servo Motor.

The actuator cylinde mainly adopts a spiral screw drive mechanism to convert rotary motion into linear motion. Spiral screw drive mainly includes nut screw drive, ball screw drive and planetary roller screw drive. Ordinary nut-screw mechanism is gradually eliminated due to the shortcomings of large transmission friction resistance and low transmission efficiency. At present, the more commonly used are ball screw transmission and planetary roller screw transmission.
Ball screw is one of the most commonly used transmission components of electric cylinders. Its main function is to convert rotary motion into linear motion, or convert torque into axial repetitive force, and it has both high precision, reversibility and high efficiency. specialty. Since many balls roll between the screw shaft of the ball screw pair and the screw nut, the electric cylinder using the ball screw can achieve higher movement efficiency.

This video briefly shows the application of the ATO servo system in a linear slide.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 6hp (4.5kW) Linear Servo Motor, 29Nm, 34kN, 1800mm

Can your 6hp linear servo motor be used in harsh environments?

Can your 6hp linear servo motor be used in harsh environments?

From: Selena | Date: 04/11/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, the 6hp linear servo motor has strong performance and can be used in harsh environments. When using it in the presence of dust, you need to make a sealed cover to prevent dust.
